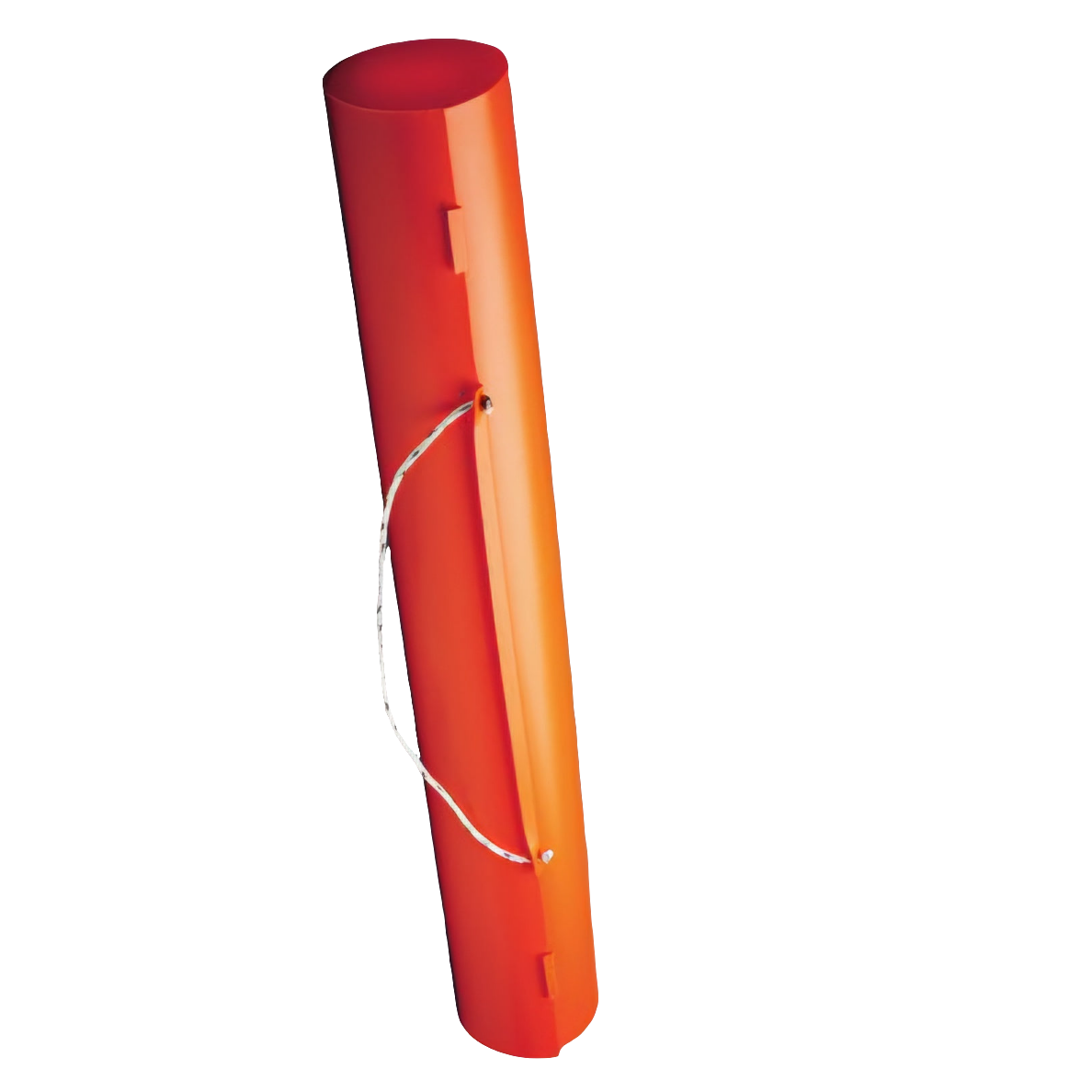

Bierer Pole Guard Class 5 48kV Phase to Phase Insulating Cover 6-14in Diameter B-PG

Product Overview

Used by linemen and electrical crews to insulate and protect energized conductors and equipment during overhead work. This Bierer pole guard provides Class 5 protection, helping reduce the risk of accidental contact and improving safety when working on systems up to 46kV.

Key Benefits

• Class 5 rated for high voltage protection up to 48.3kV phase to phase
• Provides insulation barrier around poles and conductors
• High density polyethylene construction for durability and flexibility
• Resistant to chemicals and harsh environmental conditions
• Performs reliably in both hot and cold weather
• Lightweight and easy to install in the field

Common Uses

Commonly used for:
• Covering energized conductors during maintenance
• Creating insulated work zones on overhead lines
• Protecting crews from accidental contact
• Distribution and transmission line work
• Substation and utility safety applications

Specifications

Model: B-PG
Type: Pole guard / insulating cover
Diameter Range: 6 inch to 14 inch
Class Rating: Class 5
Max Voltage Phase to Phase: 48.3kV
Max Voltage Phase to Ground: 27kV
System Voltage Application: Up to 46kV
Material: High density polyethylene (HDPE)
Includes: 1 pole guard

Who It’s For

Designed for linemen, utility contractors, and electrical crews performing energized work on overhead distribution and transmission systems.

Lead Time

Stocked product
