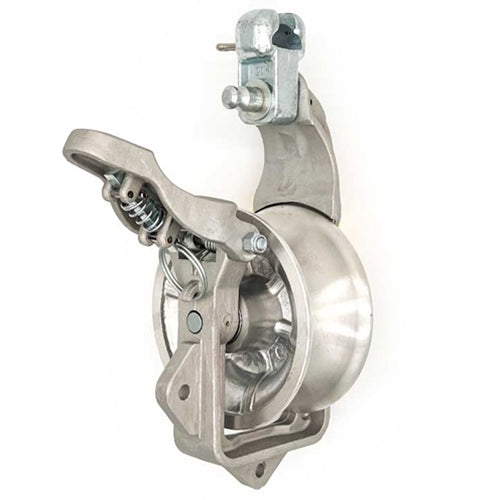

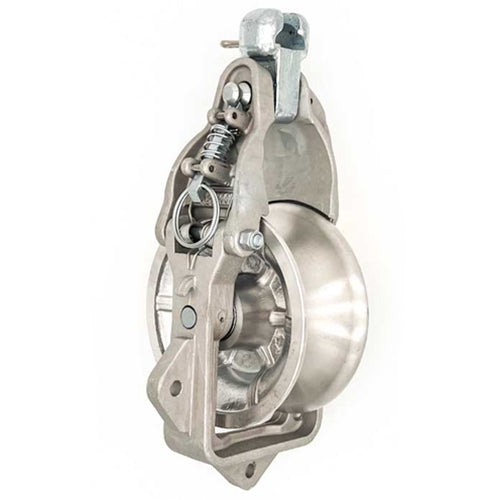

Slingco 7in Spring Gate Stringing Block ZAB4344

Used by linemen to safely string, transfer, and replace overhead conductors on electrical distribution lines. Built for overhead distribution work where smooth conductor handling, reduced tension, and quick loading are critical in the field.

Key Benefits
• Low friction bearings reduce pulling tension and equipment strain
• Spring gate allows fast loading with hot stick or by hand
• Auto locking gate improves safety during conductor handling
• Lock open feature allows hands free conductor placement
• Three mounting positions for flexible installation in the field
• Lightweight aluminum design for easy handling on the pole
• Compatible with multiple mounting accessories for different setups

Common Uses
Commonly used for:
• Stringing overhead conductors on distribution systems
• Replacing aerial conductors during maintenance
• Transferring conductors between structures
• Overhead distribution construction and rebuild work
• Conductor handling with lineman tools and utility equipment
• Electrical crews working in tight or angled mounting situations

Specifications
• Manufacturer: Slingco
• Part number: ZAB4344
• Product type: Spring gate stringing block
• Sheave diameter: 7 in
• Safe working load: 2,500 lbs
• Weight: 3.76 kg
• Height: 384.2 mm
• Sheave size: 177.8 mm
• Bottom of groove: 114.3 mm
• Groove radius: 57.15 mm
• Material: Aluminum
• Gate type: Spring loaded with lock open and auto close
• Mounting: Three position mounting, compatible with crossarm brackets and ball clevis attachments

Who It’s For
Designed for linemen, utility contractors, and electrical crews handling overhead distribution, conductor stringing, and line maintenance.

Lead Time
Call for availability
