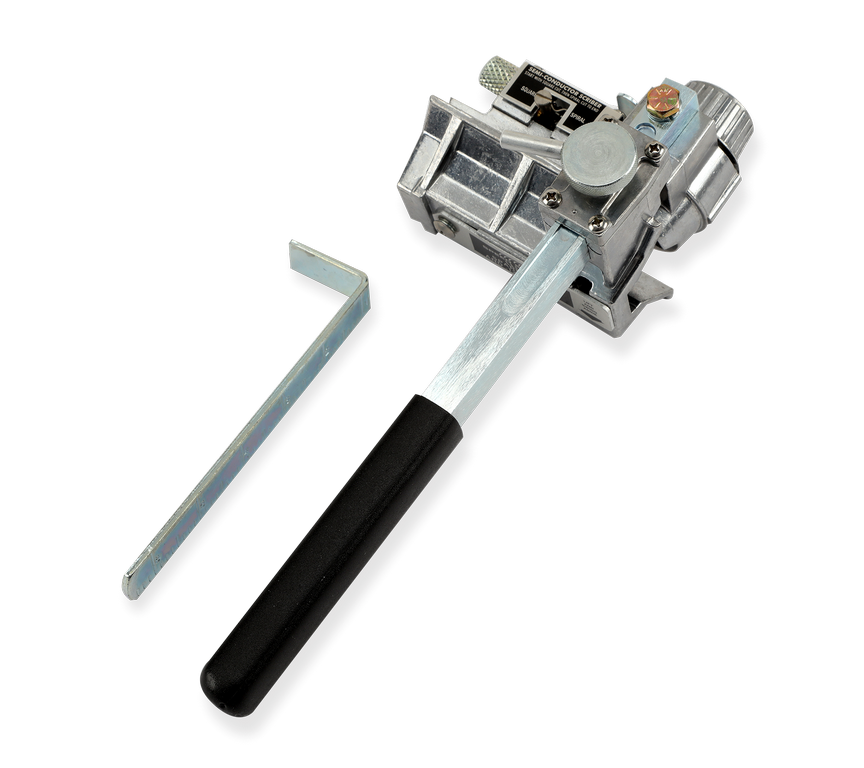

Speed Systems Combination Cable Stripper and Semi Con Scorer 1/2in to 1-3/4in 1542-2AS

The Speed Systems 1542-2AS Combination Speed Stripper is used by linemen to strip insulation and score semi conductive layers on power cable. Designed for overhead distribution and underground cable prep, it delivers precise, repeatable cuts for reliable terminations.

Key Benefits
• Dual function tool strips insulation and scores semi con
• Adjustable blade depth ensures precise, controlled cuts
• No bushings required for faster setup and use
• Improves installation reliability and consistency
• Increases speed and safety during cable prep
• Includes wedge blade installed and spare straight blade

Common Uses
Commonly used for:
• Stripping insulation from power cable
• Scoring semi conductive outer shield
• Preparing cable for terminations and splices
• Underground distribution cable work
• Utility equipment installation
• Electrical crews performing cable prep

Specifications
Model: 1542-2AS
Type: Combination cable stripper and semi con scorer
Cable O.D. Range: 1/2 in to 1-3/4 in (12.7 mm to 44.5 mm)
Blade Adjustment Range: 0.001 in to 0.090 in
Included:
• Wedge blade installed
• Spare straight blade
• 1646X scale gauge

Cable Capacity Guidelines
• 5kV: Up to 1000 MCM
• 15kV: Up to 750 MCM
• 25kV: Up to 350 MCM
• 35kV: Up to 3/0

Design Features
• Combines functionality of insulation stripper and semi con scorer
• Precision adjustment for consistent cable preparation
• Built for repeatable, field ready performance

Who It’s For
Designed for linemen, utility contractors, and electrical crews performing overhead distribution and underground cable preparation using specialized lineman tools.

Lead Time
Call for availability
