Slingco Cross Arm Bracket for Distribution Blocks, Partial or Full Frame

Slingco Cross Arm Brackets are used by linemen to mount distribution blocks directly to crossarms for controlled pulling and conductor handling. Built for overhead distribution work, they provide a secure and adjustable mounting point based on the direction of the pull.

Key Benefits
• Securely mounts distribution blocks to crossarms
• Multiple mounting angles for different pulling directions
• Quick release pin allows fast block attachment and removal
• Fits most standard crossarm sizes
• Durable construction built for field use
• Available in partial frame and full frame styles

Common Uses
Commonly used for:
• Mounting distribution blocks on crossarms
• Overhead conductor pulling setups
• Utility equipment rigging for lineman tools
• Stringing and sagging operations
• Conductor handling during installation
• Electrical crews working overhead distribution jobs

Specifications

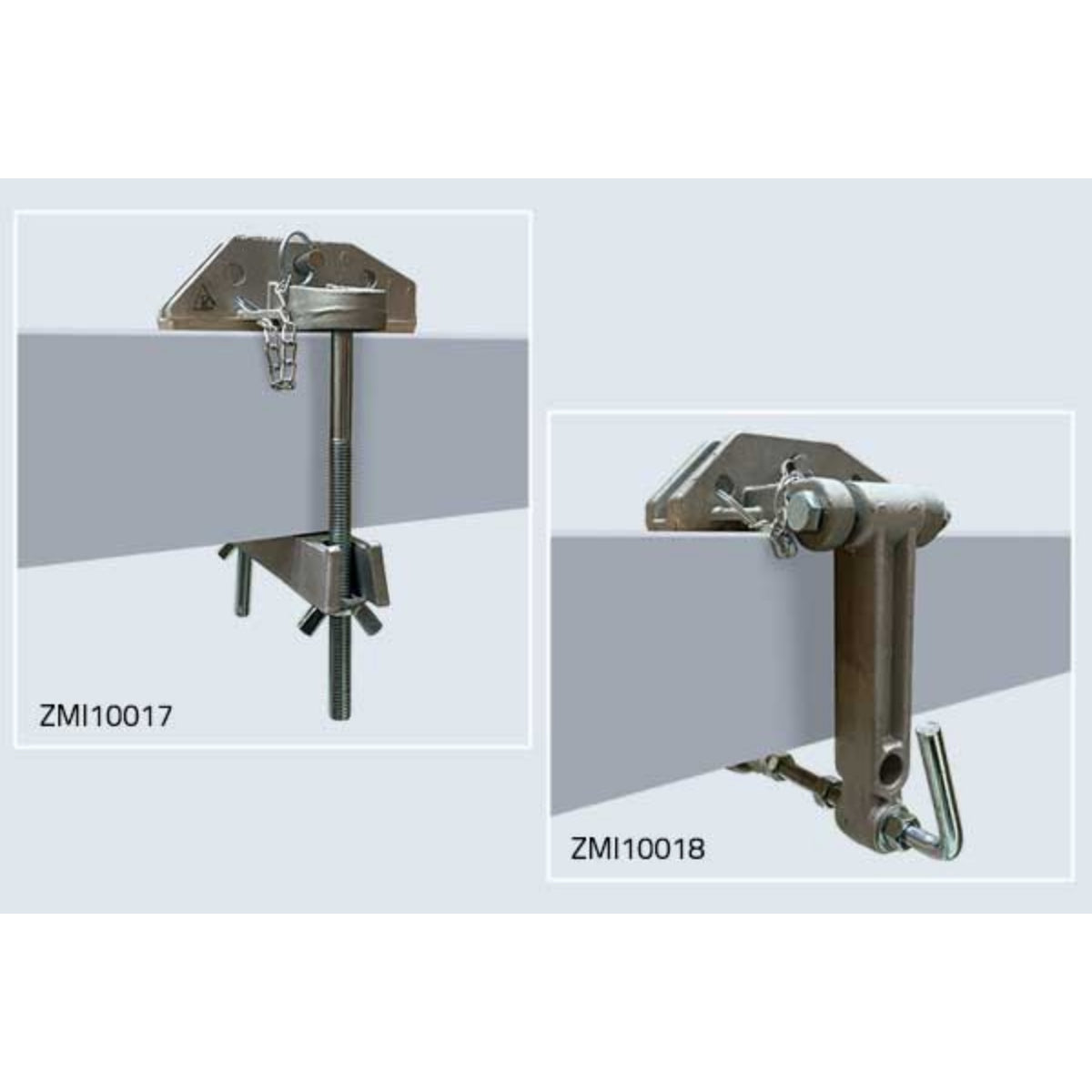

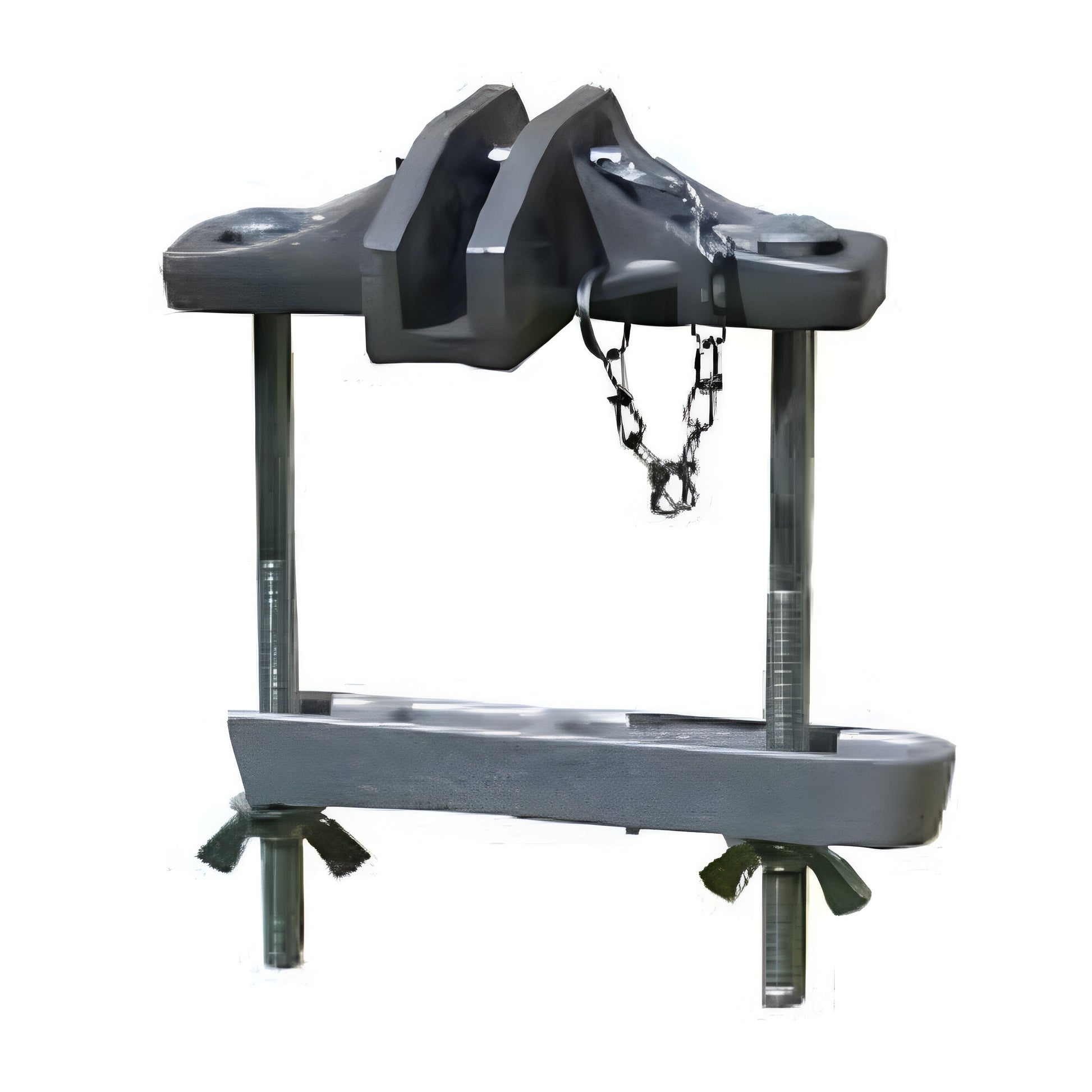

ZMI10017 Partial Frame
Crossarm Max Width: 5.7 in (146 mm)
Crossarm Max Height: 6.3 in (160 mm)
Safe Working Load: 2500 lb (3:1 safety factor)

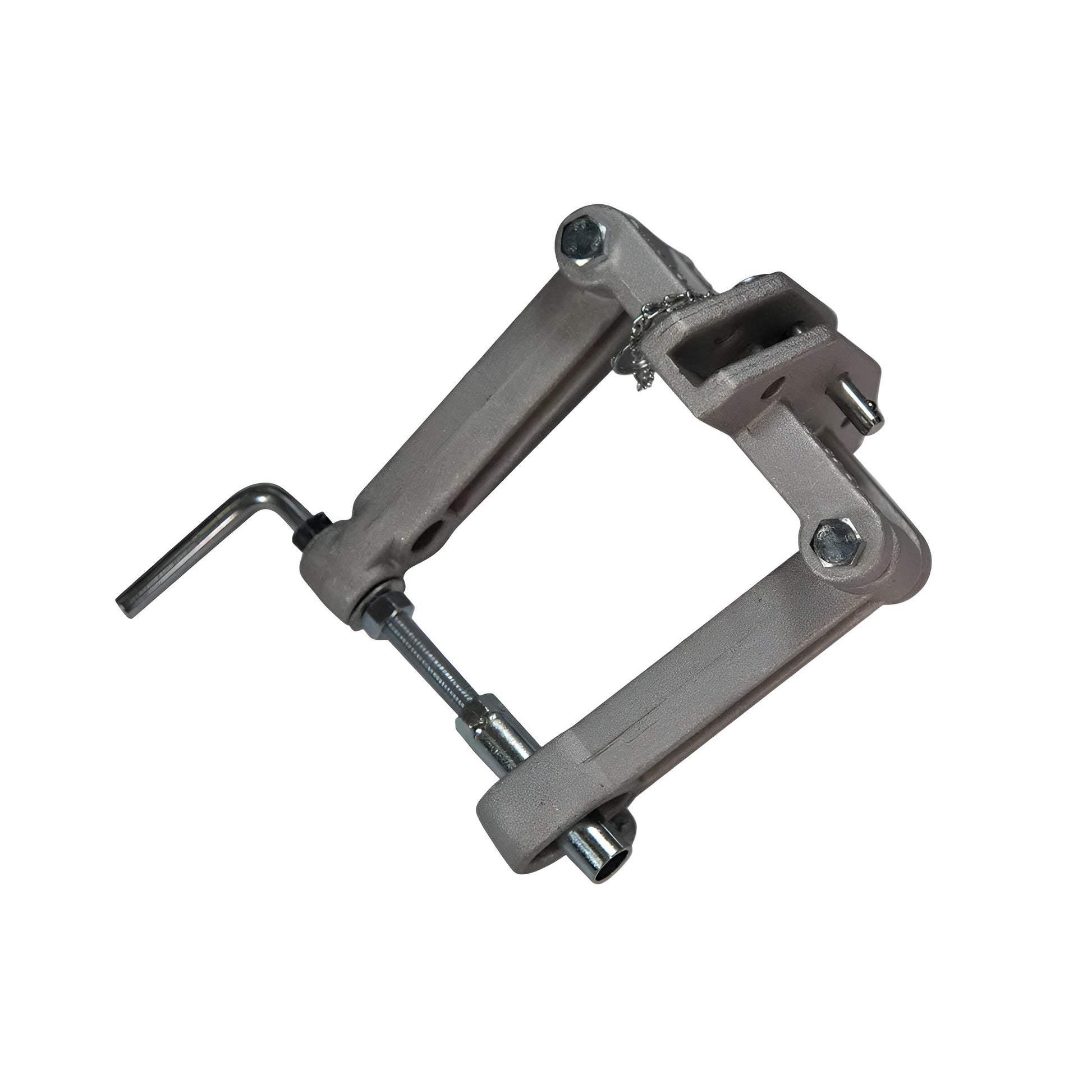

ZMI10018 Full Frame
Crossarm Max Width: 4.6 in (118 mm)
Crossarm Max Height: 5.9 in (150 mm)
Safe Working Load: 2500 lb (3:1 safety factor)

Type: Crossarm bracket for distribution blocks
Mounting: Crossarm compatible
Attachment: Quick release pin system

Who It’s For
Designed for linemen, utility contractors, and electrical crews performing overhead distribution, conductor pulling, and rigging with utility equipment.

Lead Time
Call for availability
