HDE Digital Voltage Indicator with Test Point Mode 100V to 99kV Overhead and Underground Kit DVI-100T/K02

The HDE Digital Voltage Indicator with Test Point Mode is a portable voltage detection instrument designed for linemen and utility crews working on overhead distribution and underground electrical systems. It accurately measures voltage from 100V to 99kV line to ground while displaying actual voltage readings to help distinguish between nominal system voltage and induced voltage.

With audible voltage indication, Test Point mode, and accessories for both overhead and underground applications, this complete kit is an essential tool for verifying energized circuits before maintenance or switching operations.

Key Benefits

• Measures voltage from 100V to 99kV line to ground
• Digital voltage display distinguishes nominal and induced voltages
• Audible alarm confirms voltage detection
• Test Point mode for underground equipment
• Suitable for overhead and underground applications
• Laboratory calibrated for high accuracy
• Automatic shutoff extends battery life
• Low battery indicator reduces unexpected downtime
• Includes proof tester for field verification

Common Uses

Commonly used for:

• Verifying energized circuits
• Measuring distribution system voltage
• Identifying induced voltage
• Underground bushing testing
• Capacitive test point verification
• Overhead distribution maintenance
• Utility switching operations
• Lineman tools for electrical safety testing
• Utility equipment for voltage verification

Specifications

• Product Type: Digital Voltage Indicator
• Brand: HDE
• Model: DVI-100T
• Voltage Range: 100V to 99kV line to ground
• Frequency: 60 Hz AC (50 Hz model available)
• Display: Digital LED
• Accuracy:
  • ±3% laboratory calibrated
  • Typical overhead three phase: ±10%
  • Other applications: up to ±25%
• Operating Temperature: -20°F to 140°F (-29°C to 60°C)
• Dimensions: 4.25 in H × 7 in W × 4.5 in D (11 × 18 × 11 cm)

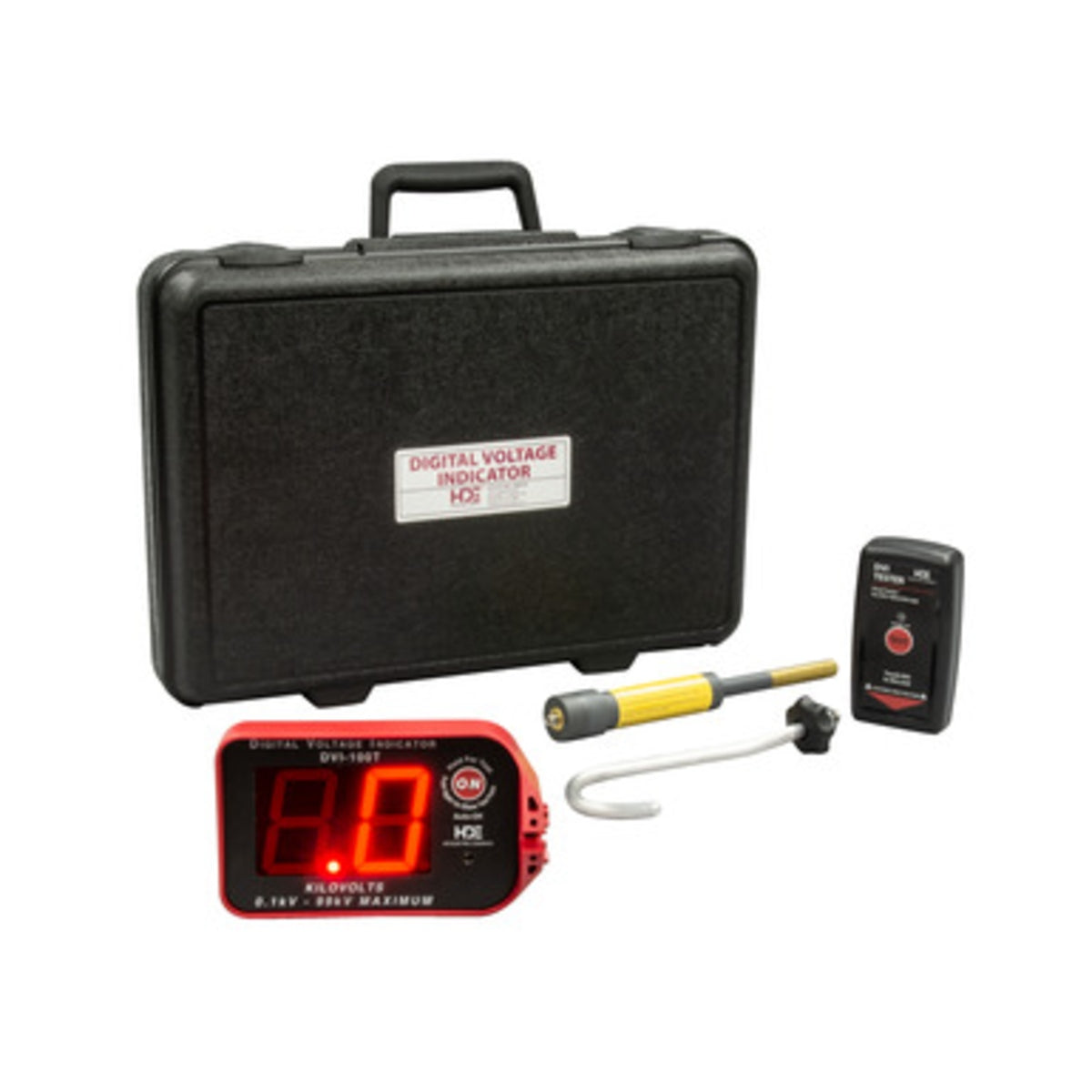

Kit Includes

• HDE DVI-100T Digital Voltage Indicator
• 2 in overhead hook probe
• Underground bushing probe
• Proof tester
• Protective plastic carrying case

Who It's For

Designed for linemen, utility contractors, municipal utilities, electrical crews, and substation technicians performing overhead distribution, underground distribution, switching, troubleshooting, and energized circuit verification.

Lead Time

Call for availability.
