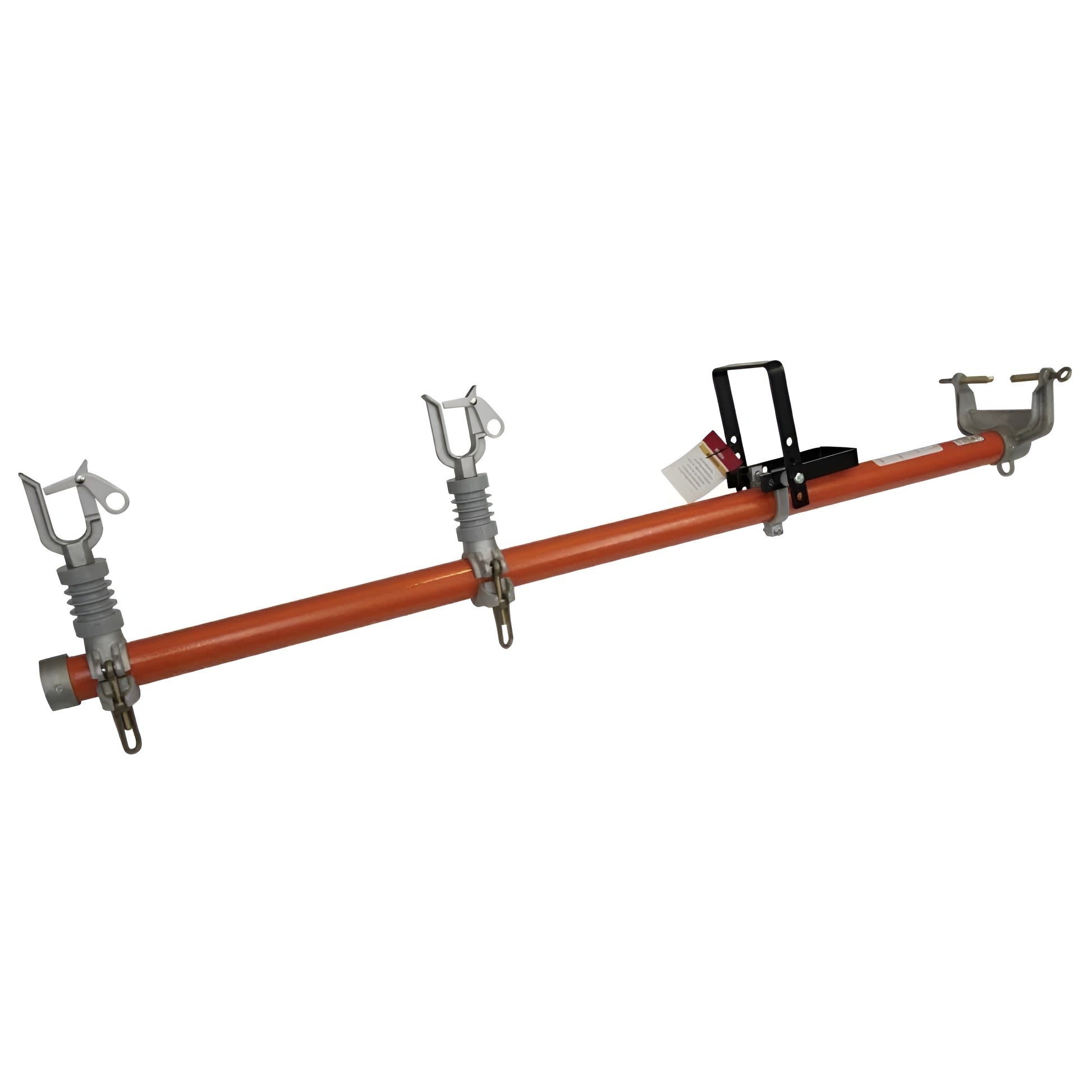

Slingco Fiberglass Extension Arm for Temporary Conductor Movement 6ft 34.5kV Rated ITP10474

Used by linemen and electrical crews to temporarily move overhead conductors and create safe working clearance during energized or congested line work. Ideal for insulator replacement, conductor replacement, and overhead distribution maintenance where controlled conductor handling is needed.

Key Benefits
• Helps create working clearance around overhead conductors
• Supports temporary conductor repositioning during line work
• Rated up to 34.5kV with insulators and 15kV without insulators
• Fits crossarms up to 6 in x 6 in for secure mounting
• Wire holders accept conductors up to 1.6 in diameter
• Field ready fiberglass construction for utility equipment applications
• QR code provides fast access to instructions in the field

Common Uses
Commonly used for:
• Moving power lines for temporary clearance
• Overhead distribution maintenance
• Insulator replacement work
• Conductor replacement jobs
• Conductor handling in congested work areas
• Lineman tools and utility equipment setups for field crews

Specifications
• Product: Slingco Fiberglass Extension Arm
• SKU: ITP10474
• Length: 6 ft
• Diameter: 2.5 in
• Voltage rating: 34.5kV with insulators
• Voltage rating without insulators: 15kV
• Wire holder capacity: Up to 1.6 in conductor diameter
• Mounting: Double bracket system fits crossarms up to 6 in x 6 in
• Material: Fiberglass
• Included: 2 wire holders and insulators
• Compliance: ASTM F711
• Compliance: OSHA 1910.269 (j)(l)
• Compliance: OSHA 1926.957 (a)(l)
• Additional option: Retrofit kit available for fiberglass crossarm protection
• Upgrade option: 15kV model can be upgraded to 34.5kV with insulators

Who It’s For
Designed for linemen, utility contractors, and electrical crews working on overhead distribution systems where temporary conductor movement and working clearance are required.

Lead Time
Stocked
