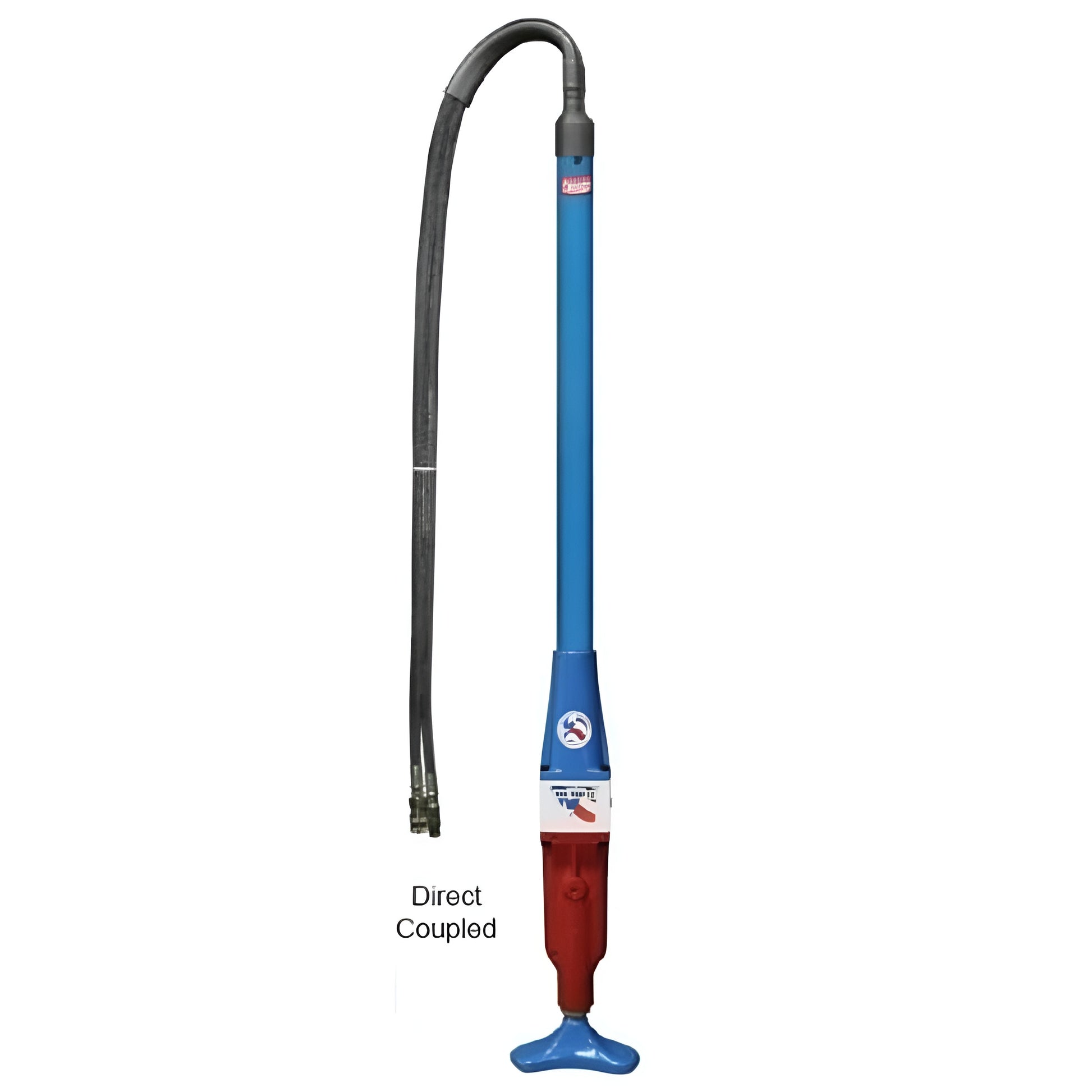

Hydraulic Pole Tamper 60in with Quick Connect REL-TMP-60

The REL-TMP-60 Hydraulic Tamper is used by linemen and utility crews to compact soil when setting poles and backfilling trenches. Designed for overhead distribution and construction work, it delivers fast, consistent compaction using hydraulic power from utility equipment.

Key Benefits
• Delivers strong, consistent compaction for pole setting and backfill
• Simple design with only 3 moving parts reduces maintenance
• Hydraulic operation increases efficiency over manual tamping
• Compact 60 inch length improves control in tight work areas
• Compatible with open and closed center hydraulic systems
• Kidney shaped foot improves compaction coverage

Common Uses
Commonly used for:
• Setting utility poles
• Compacting backfill around poles and trenches
• Asphalt patch and repair work
• Overhead distribution construction
• Utility equipment installation support
• Electrical crews performing ground prep and restoration

Specifications
Model: REL-TMP-60
Length: 60 in
Width: 4 in
Flow Range: 4 to 6 GPM
Operating Pressure: 1,000 to 2,000 PSI
Blows Per Minute: 1,160 BPM at 5 GPM
Foot Size: 2.5 in x 8 in kidney shaped
Port Threads:
• Pressure: 9/16-18 SAE O ring
• Return: 3/4-16 SAE O ring

Configuration
• Direct coupled hydraulic design
• Available in valve on tube or hose configurations

Who It’s For
Designed for linemen, utility contractors, and electrical crews performing overhead distribution, pole setting, and construction work using hydraulic utility equipment.

Lead Time
Call for availability
