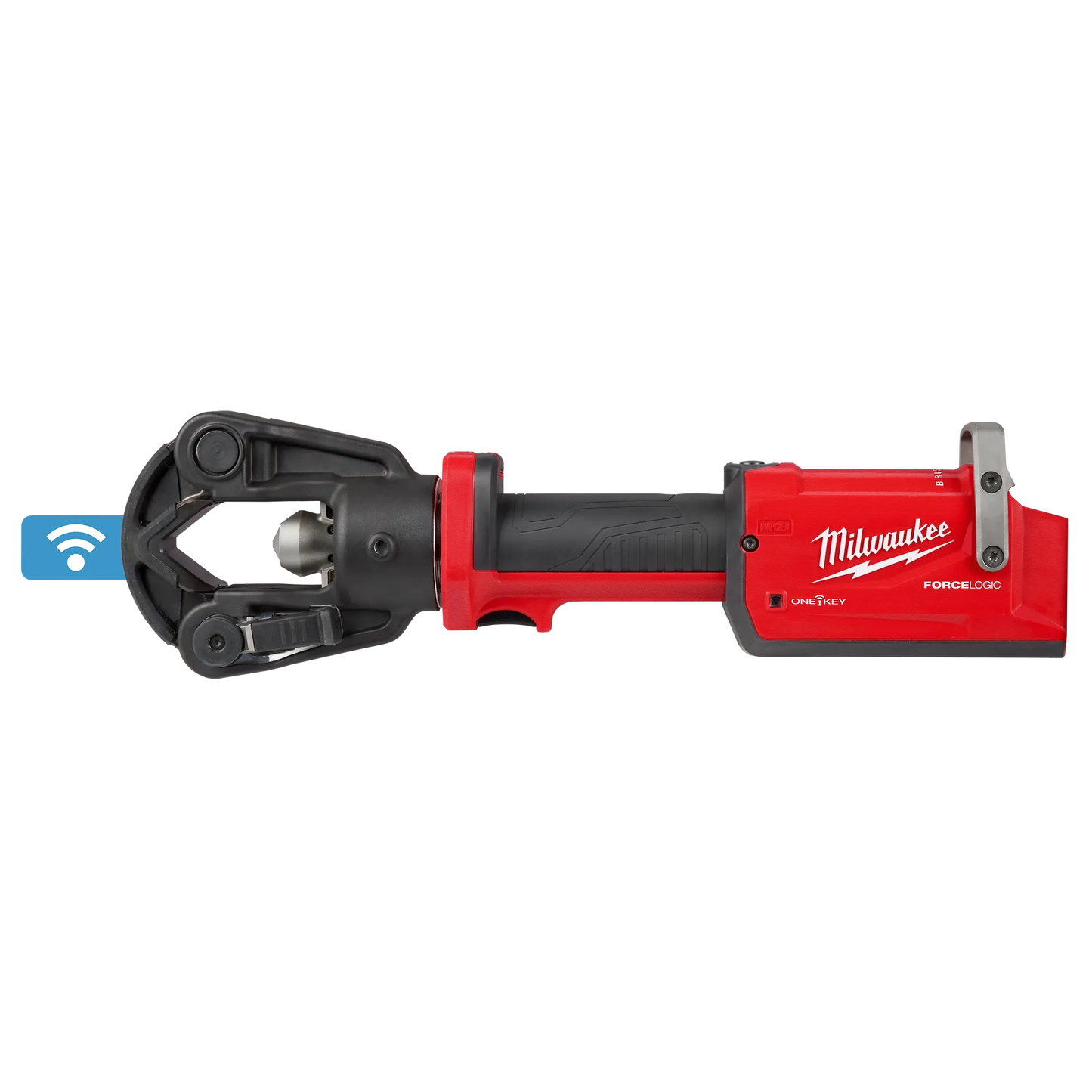

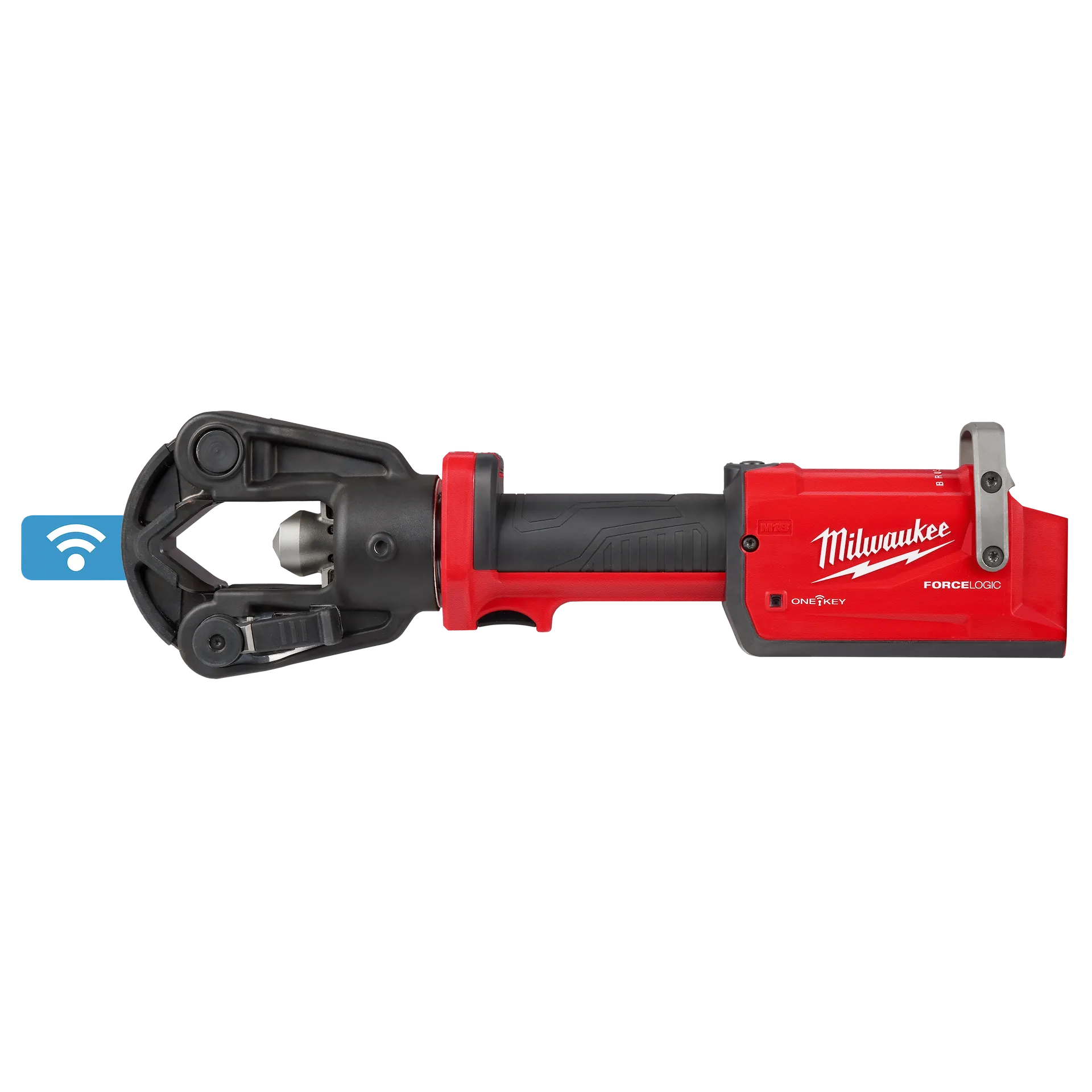

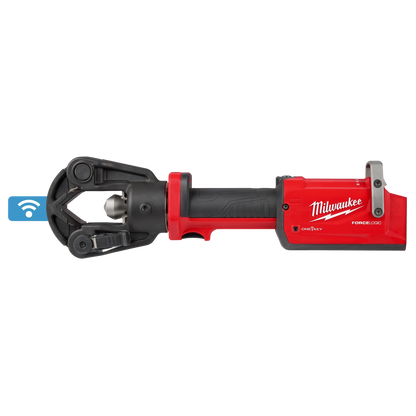

The Milwaukee 2876-20 11 Ton Dieless Crimper is used by linemen to make fast, consistent utility connections without changing dies. Built for overhead distribution and underground work, it delivers reliable crimps on a wide range of connectors with one tool.

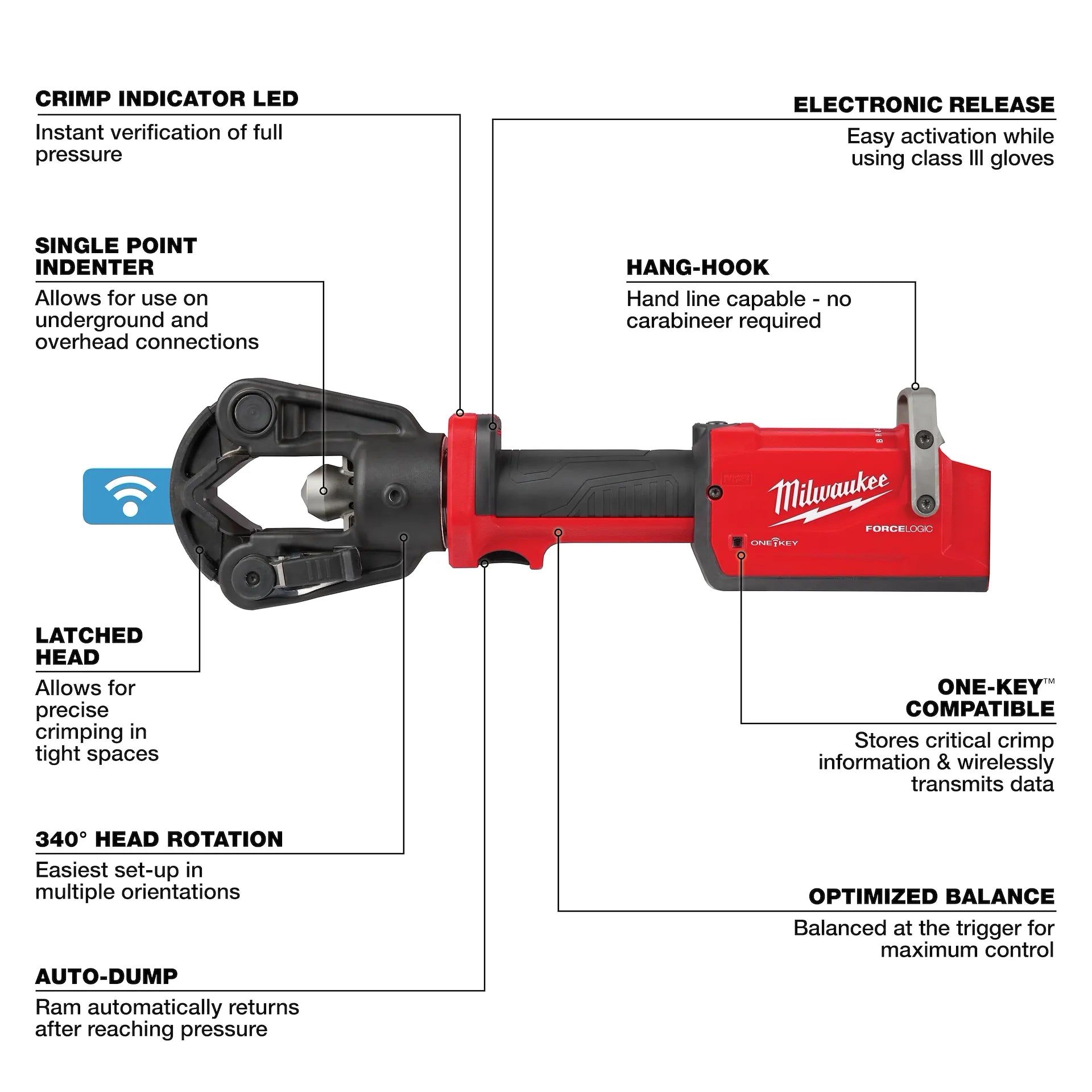

Key Benefits
• Dieless design eliminates die changes and speeds up workflow
• 11 ton hydraulic output delivers consistent, high quality crimps
• Predictive Force Monitoring ensures full crimp pressure every time

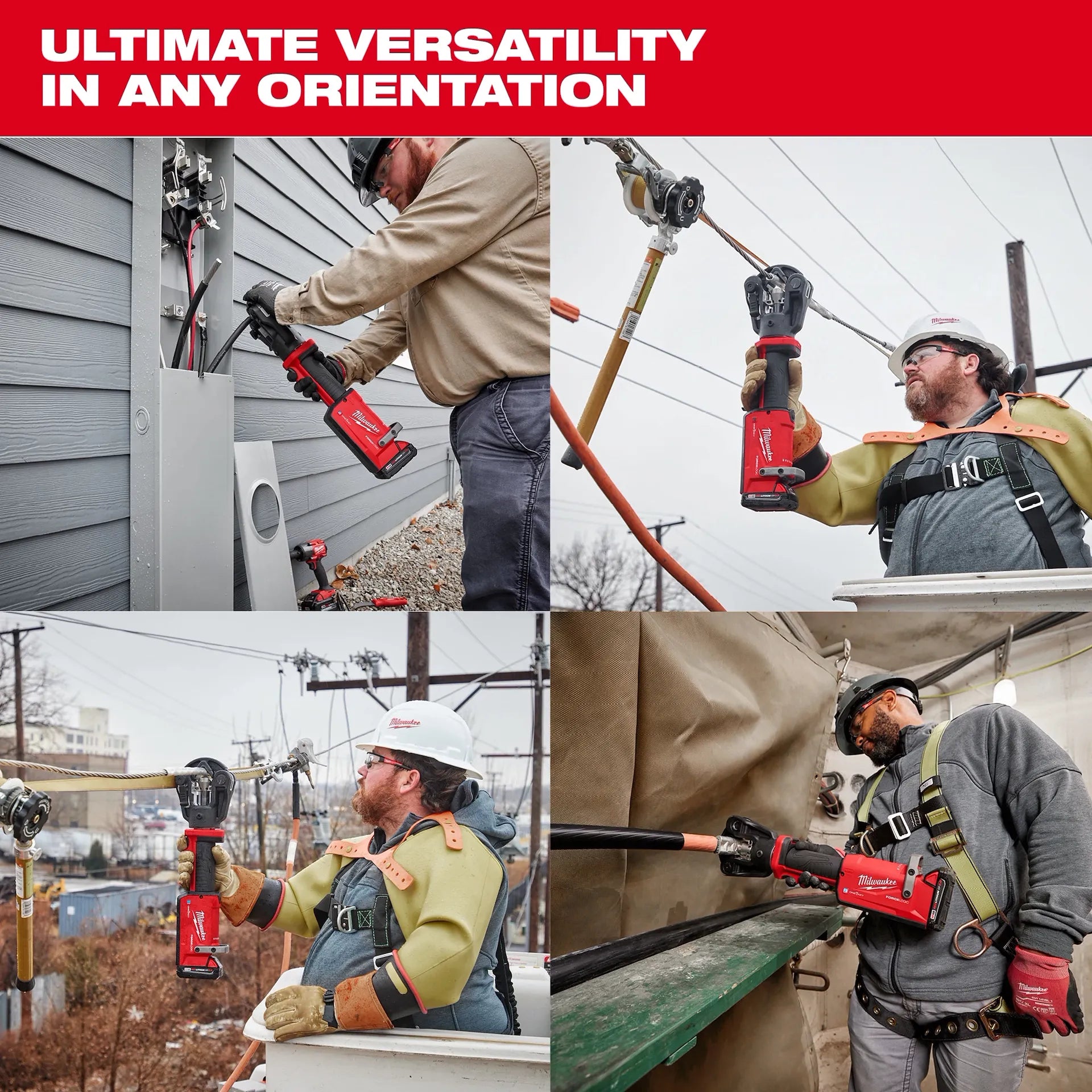

• Inline balanced design allows one handed operation in tight spaces

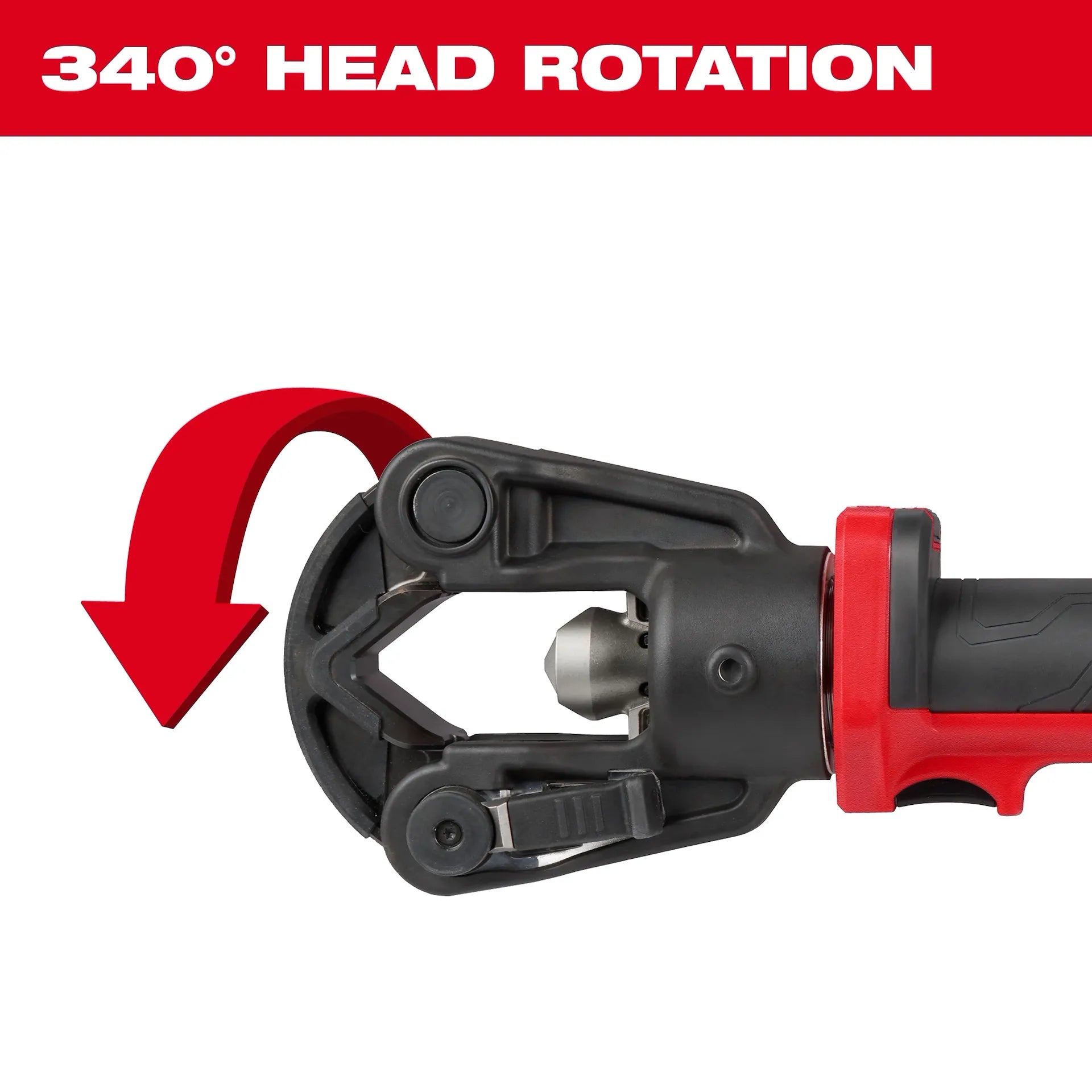

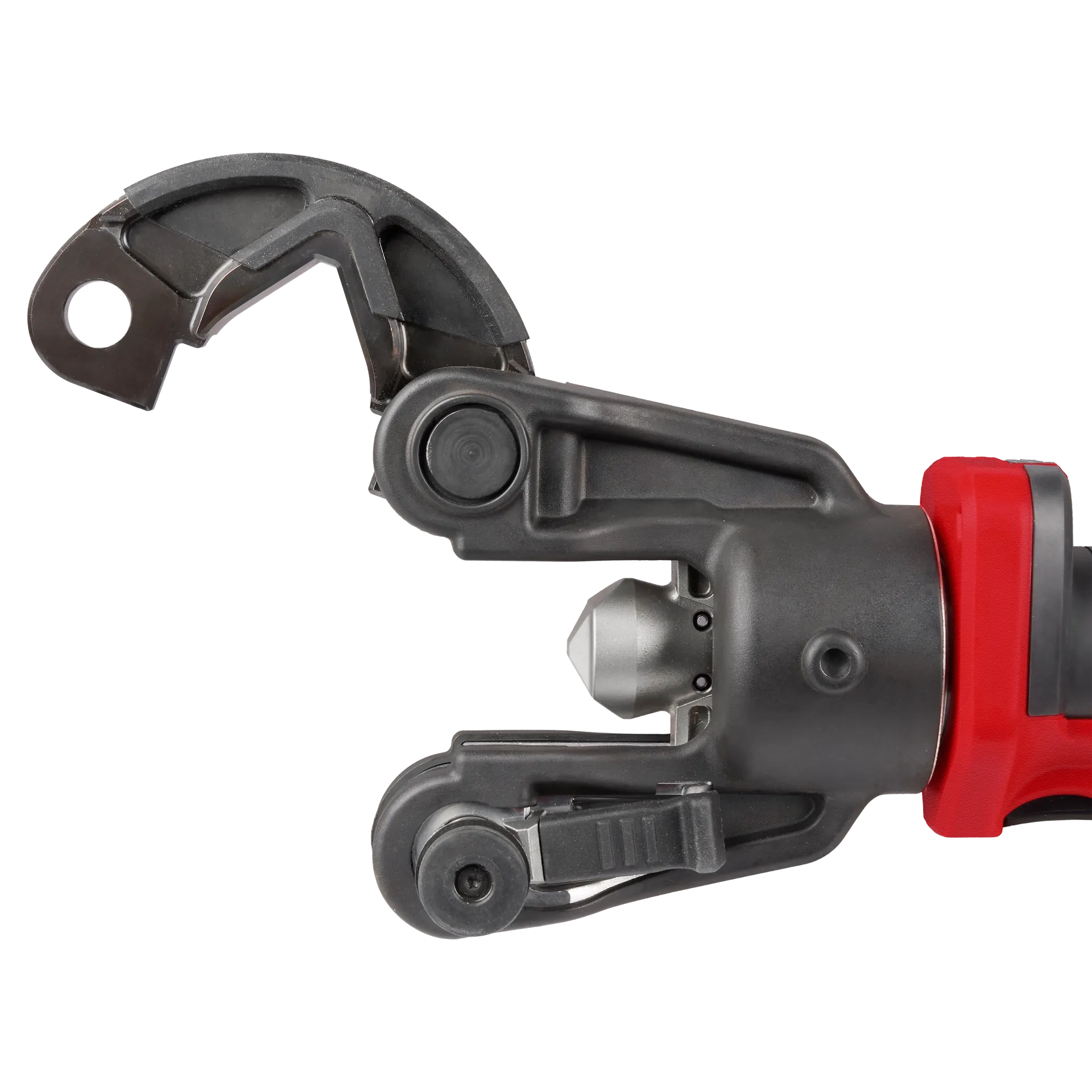

• 340 degree rotating head improves access around conductors

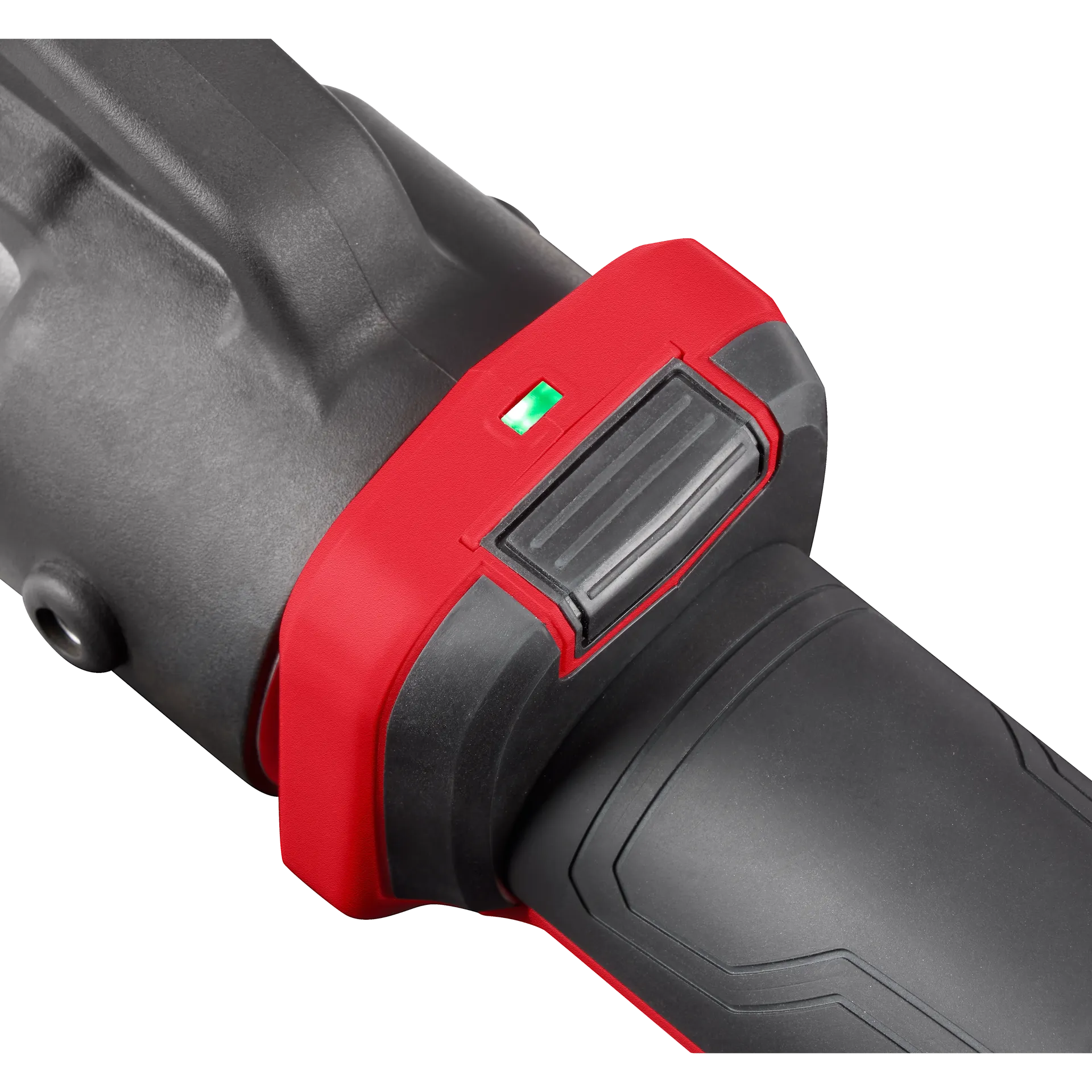

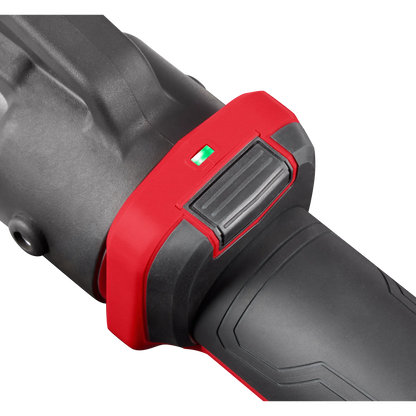

• Pre crimp battery check prevents incomplete crimps

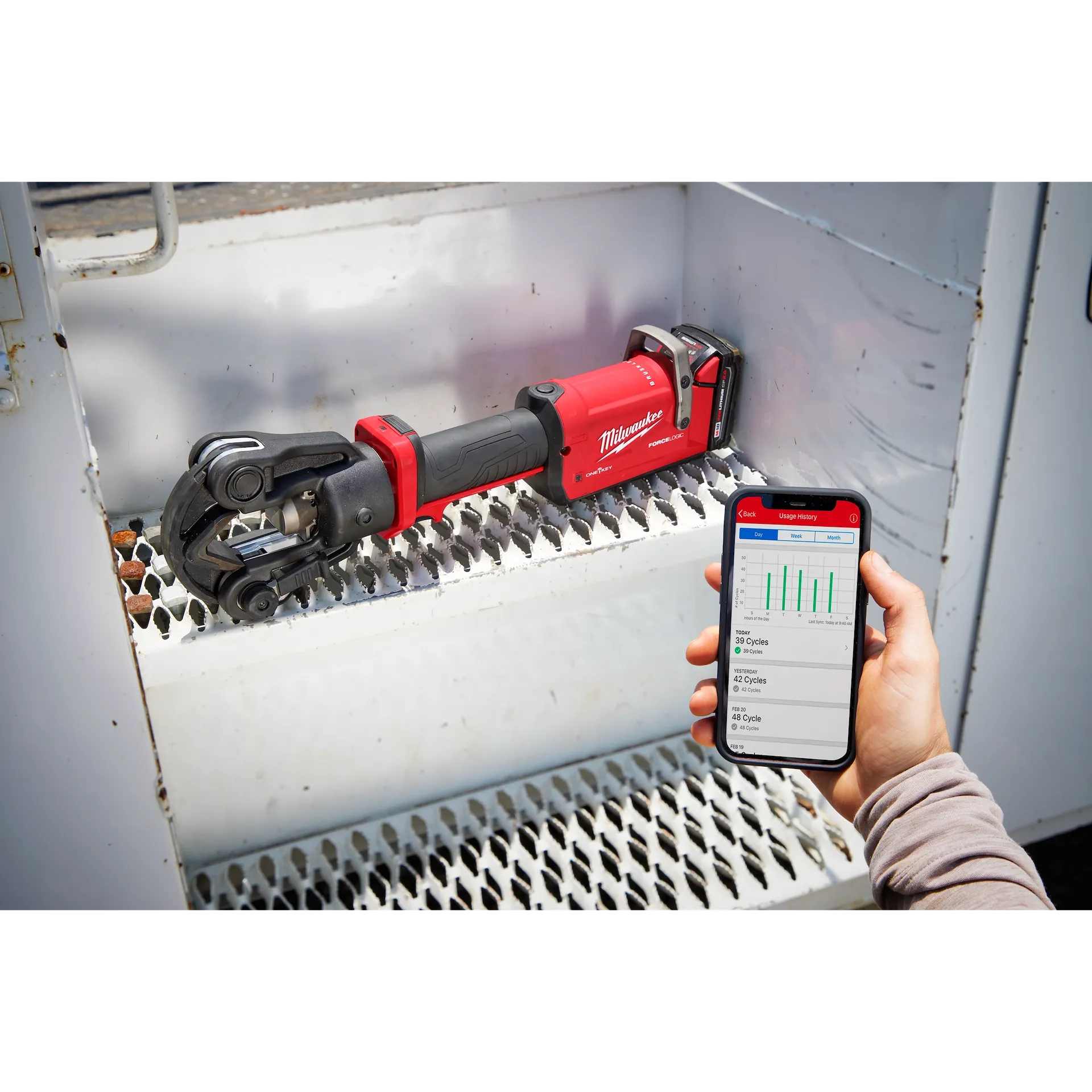

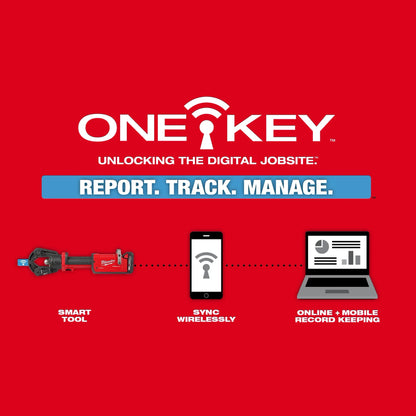

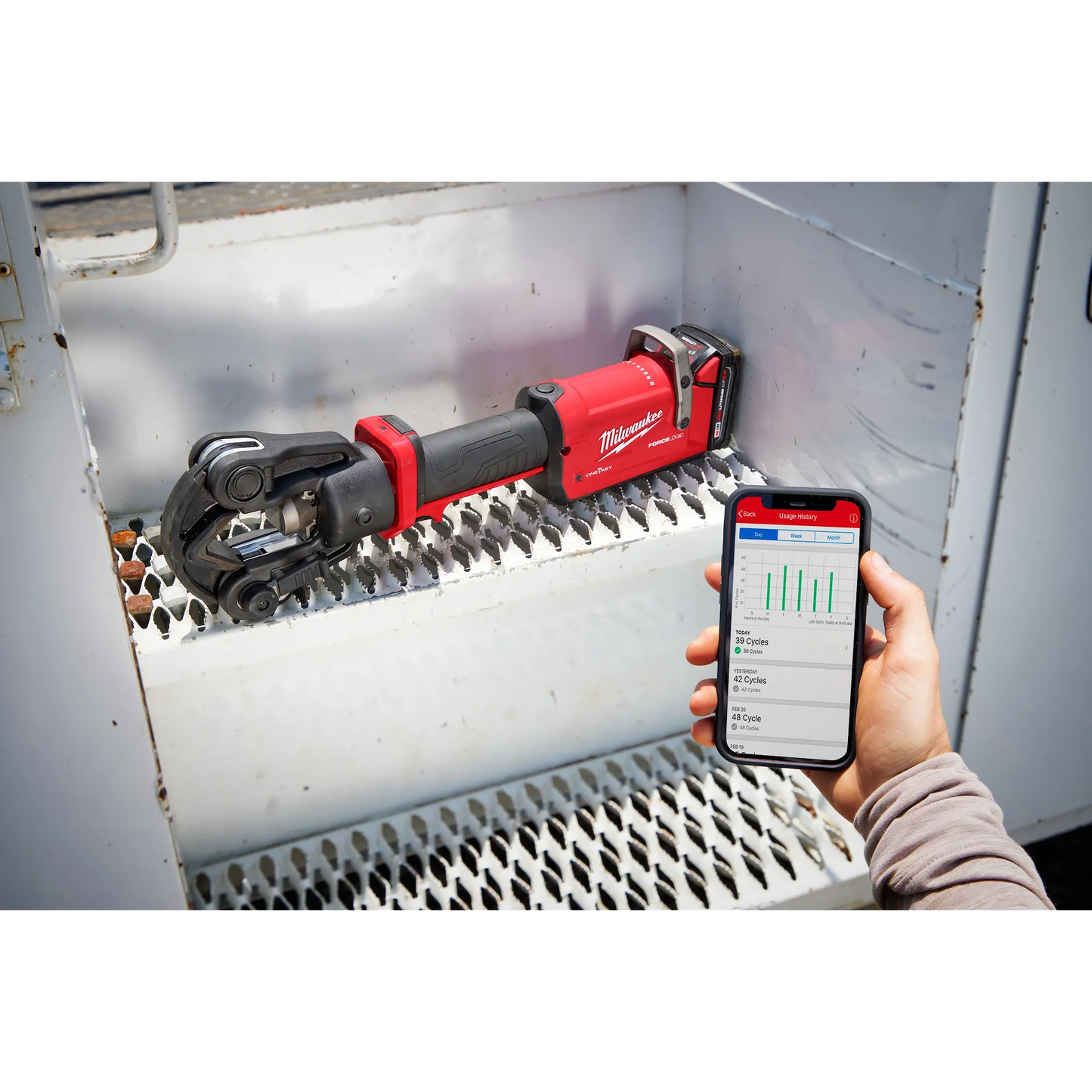

• ONE KEY technology records and tracks every crimp for reporting
• Built for use with gloves with large trigger and release button
Common Uses
Commonly used for:

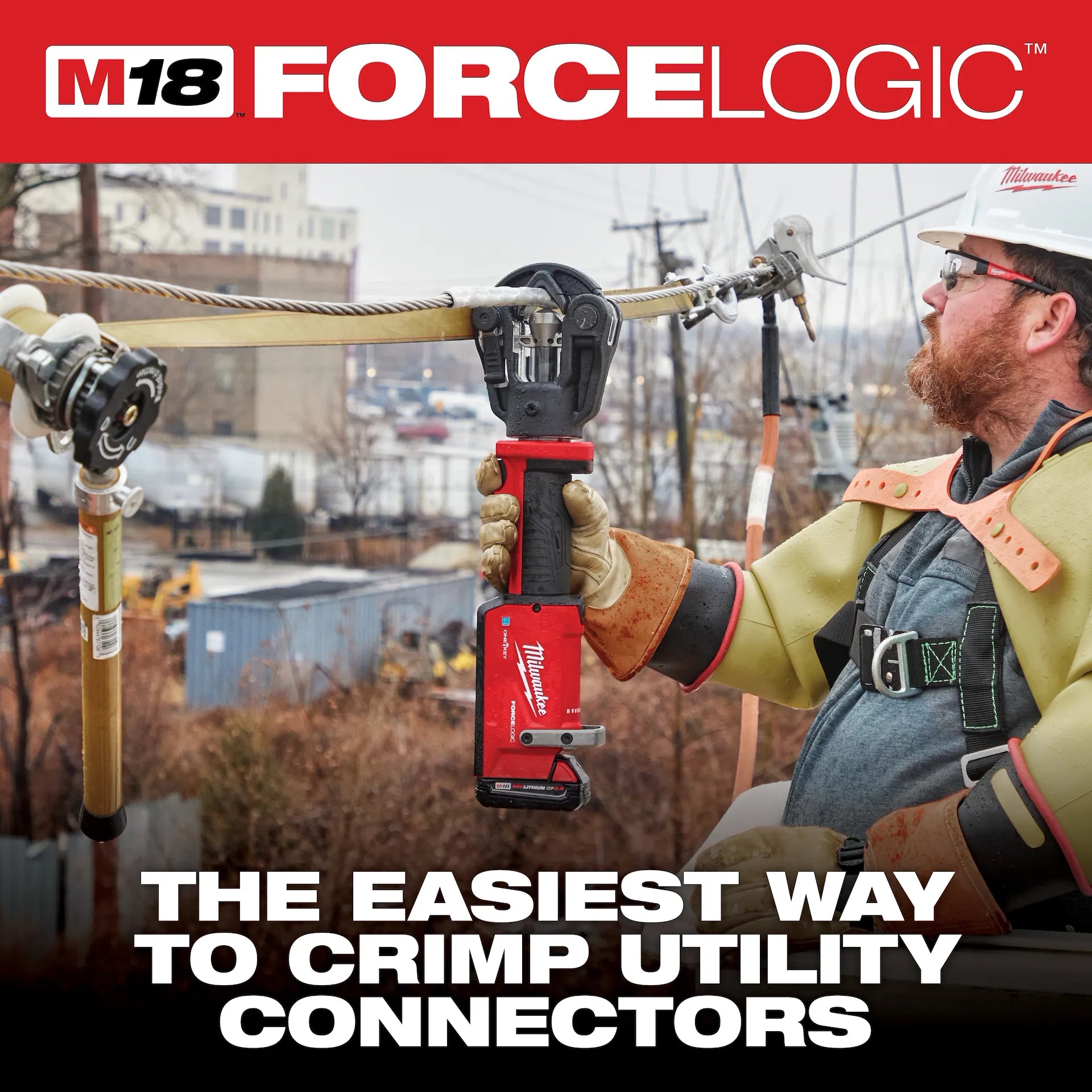

• Crimping utility connectors in overhead distribution
• Installing lugs and splices on copper and aluminum conductors

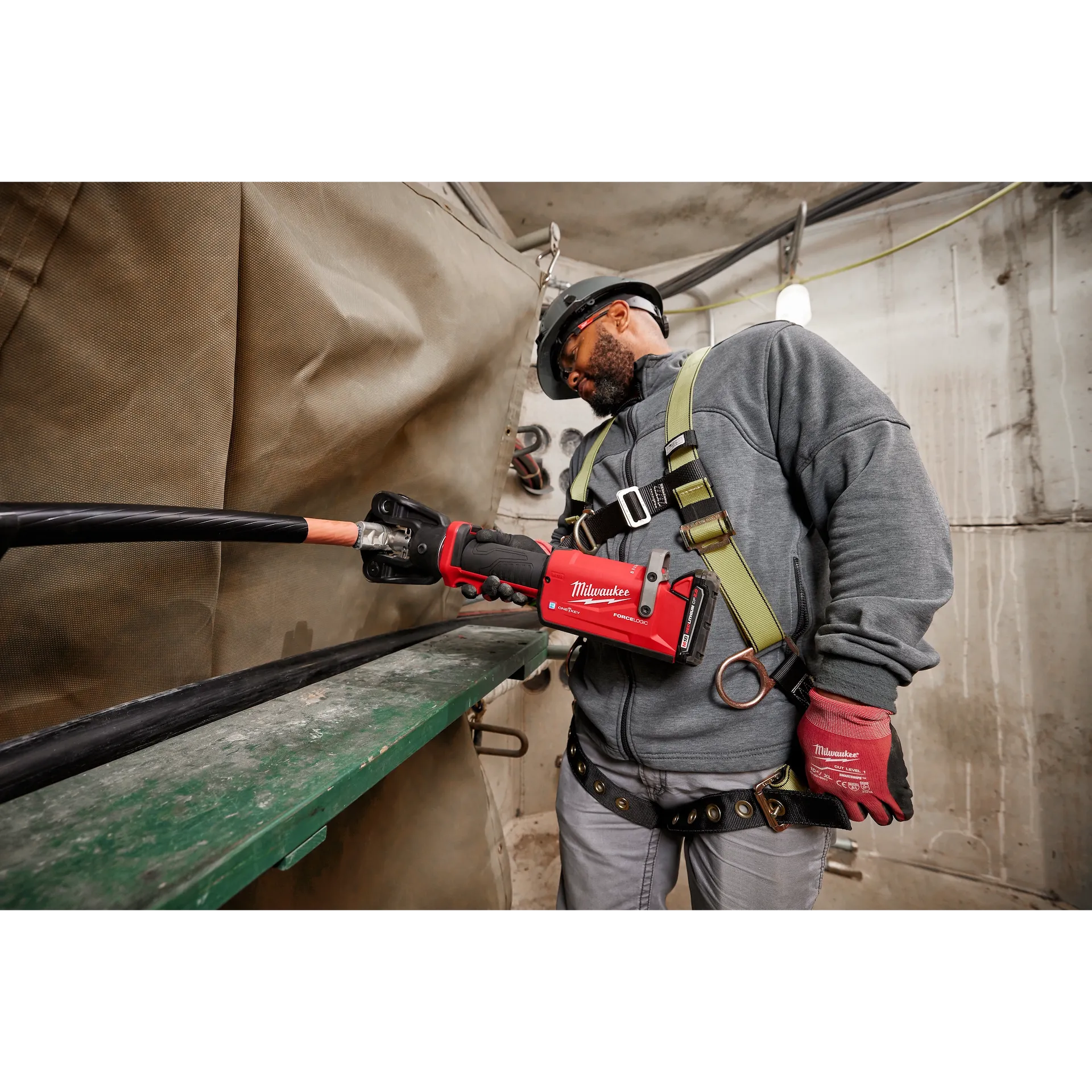

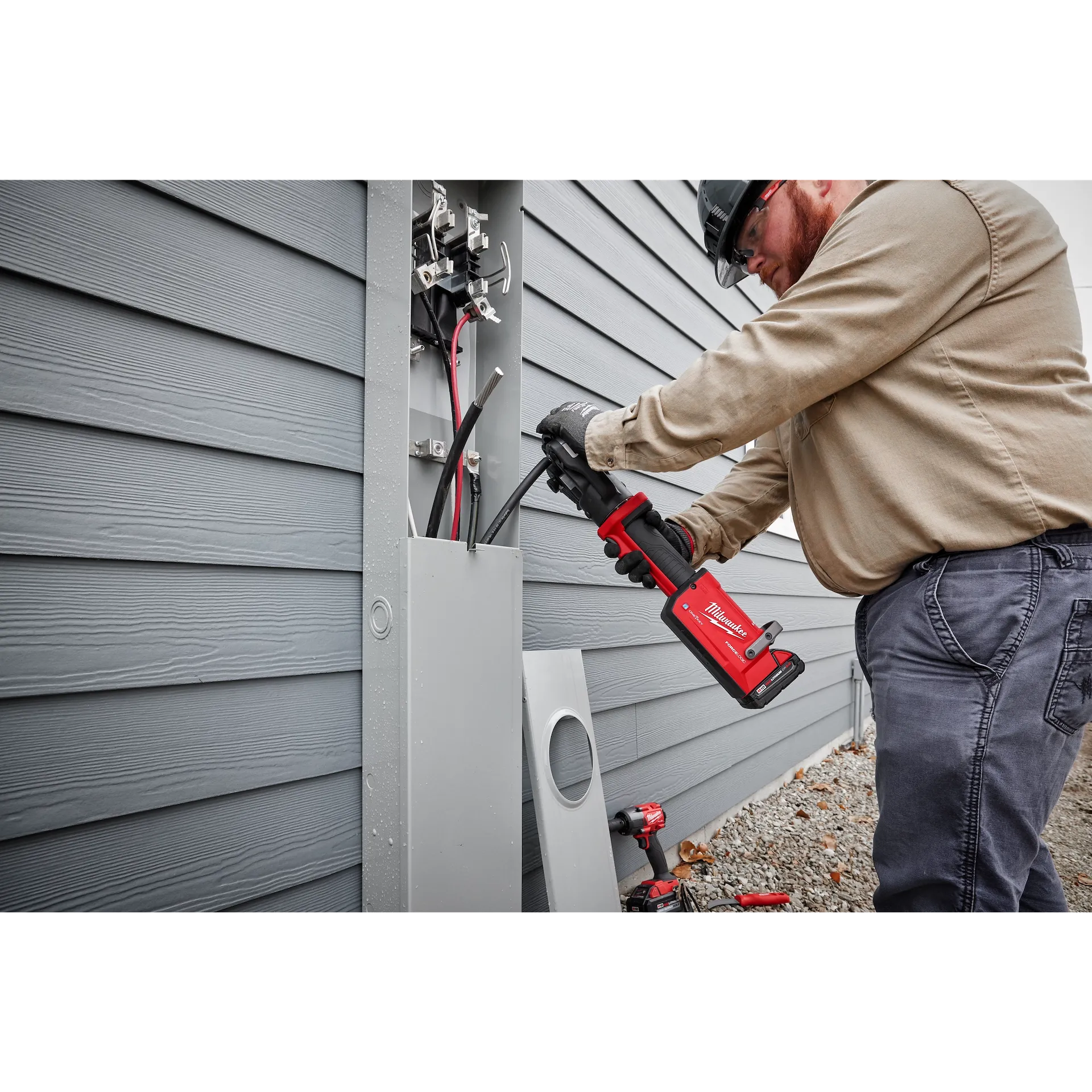

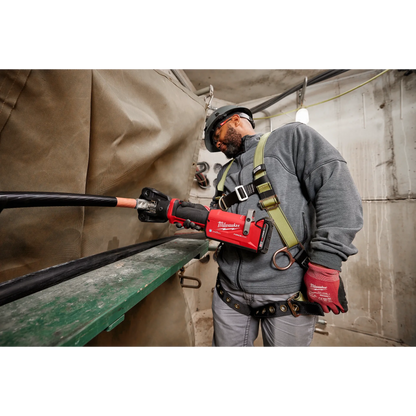

• Underground and service cable connections
• Utility equipment installation and maintenance
• Conductor termination for lineman tools
• Electrical crews performing high volume crimping work
Specifications
Model: 2876-20
Crimping Force: 11 ton
Crimp Range:
• #4 to 556 MCM AAC and ACSR
• #4 to 1000 MCM copper and aluminum
Battery Platform: M18
Motor: POWERSTATE brushless
Head Rotation: 340 degrees

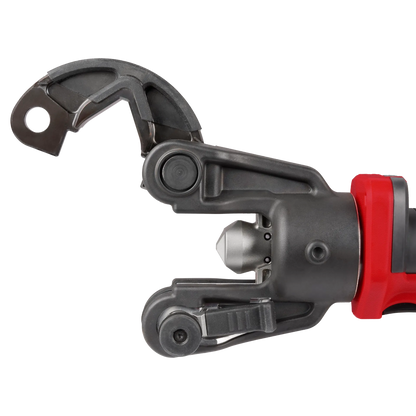

Operation: Dieless linear crimping
Technology: ONE KEY enabled with data tracking
Hydraulic System: Fully enclosed high speed system
Operating Temperature: -4°F to 140°F
Weight (Tool Only): 14.25 lb
Weight (With Battery): 15.25 lb
Length: 21.1 in
Height: 6.1 in
Width: 3.6 in
Compliance
ANSI C119.4
UL486A-B
Who It’s For
Designed for linemen, utility contractors, and electrical crews performing overhead distribution, underground connections, and conductor termination using utility equipment.
Lead Time
Call for availability
