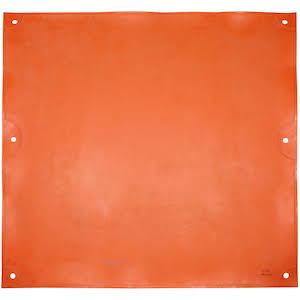

Slingco PPE08434-S Class 4 Rubber Insulating Blanket 36" x 36" Orange Solid

Slingco PPE08434-S Class 4 Rubber Insulating Blanket 36" x 36" Orange Solid

MANUFACTURER: Slingco

MODEL / SKU: PPE08434-S

7 in stock — usually ships in 1–2 business days.

$144.90
$144.90
Sale Sold out
Shipping calculated at checkout.
REQUEST A QUOTE
NEED IT FAST? Contact our team to confirm current availability and lead time. 225-209-6300

Product Overview

The Slingco Class 4 Rubber Insulating Blanket provides electrical protection for utility linemen working around energized conductors, apparatus, and distribution equipment. Its flexible 36" x 36" solid design covers irregularly shaped components where conventional protective covers may not fit. Constructed from ozone-resistant Type II rubber, this orange blanket is rated for use up to 36kV AC and features integrated eyelets for secure placement during overhead linework.

View full details

Features and Benefits

• Class 4 electrical insulation rating provides protection for qualified utility workers around energized equipment up to 36,000V AC
• Meets ASTM D1048 requirements for rubber insulating blankets used in electrical protective applications
• Type II ozone-resistant rubber construction provides durability and flexibility for demanding outdoor utility environments
• Full 36" x 36" solid coverage helps protect workers from accidental contact with exposed energized components
• Flexible rubber material conforms to irregularly shaped equipment where rigid insulating covers may not provide suitable protection
• Integrated eyelets accommodate compatible Slingco blanket magnets for secure positioning during overhead linework
• Compatible with blanket clamps, pins, and magnets for versatile installation around electrical equipment
• Orange Style A construction provides clear identification of the insulating blanket during field operations
• Manufacturer date code supports identification of the blanket's manufacturing date

Specifications

• Manufacturer: Slingco
• Model: PPE08434-S
• Manufacturer Part Number: PPE08434
• Product Type: Rubber Insulating Blanket
• Electrical Class: Class 4
• Rubber Type: Type II
• Style: A
• Configuration: Solid
• Color: Orange
• Material: Ozone-Resistant Rubber
• Maximum AC Use Voltage: 36,000V
• Standard: ASTM D1048
• Length: 36"
• Width: 36"
• Dimensions: 36" x 36"
• Weight: 8.7 lb (3.9 kg)
• Attachment Features: Integrated Eyelets
• Date Code: Manufacturer Date of Manufacture

Common Applications

• Overhead electrical distribution construction and maintenance
• Temporary insulating cover-up around energized electrical conductors
• Protecting utility workers from accidental contact with energized apparatus and circuits
• Covering irregularly shaped electrical equipment during line maintenance
• Insulating exposed components around transformers and substations
• Applications where conventional insulator covers, cutout covers, or line hose cannot provide suitable coverage
• Aerial bucket truck operations involving electrical protective cover-up

What's Included

• (1) Slingco PPE08434-S Class 4 36" x 36" Orange Solid Rubber Insulating Blanket
