6ft Temporary Screw Ground Rod

Temporary Screw Ground Rod

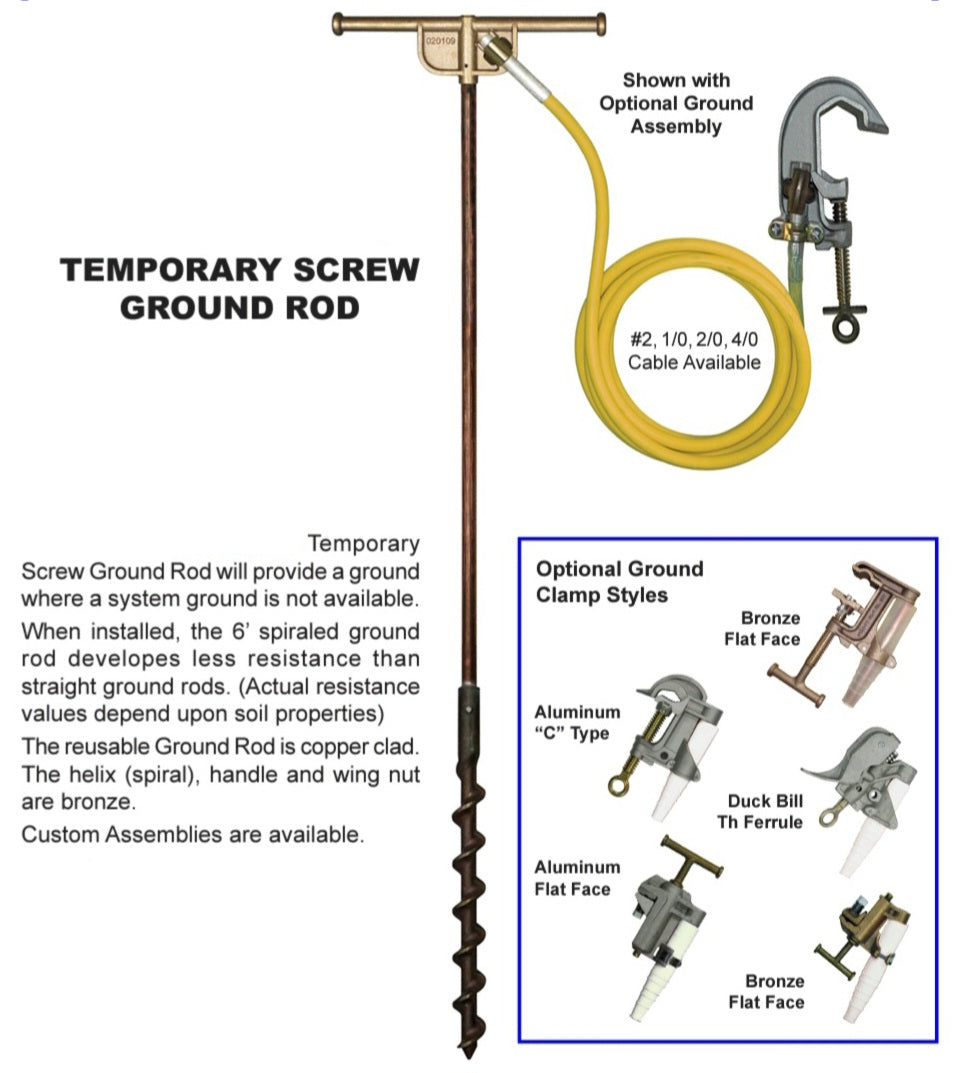

The R-T-GRND Temporary Screw Ground Rod provides a reliable grounding point where a system ground is not available. Its 6-foot spiral design delivers lower resistance than straight ground rods, depending on soil conditions.

Key Features
• Provides temporary grounding where system ground is unavailable
• 6' spiral design develops lower resistance than straight rods (soil dependent)
• Reusable copper-clad construction
• Helix (spiral), handle, and wing nut made of bronze
• Compatible with multiple ground clamp styles
• Custom assemblies available

Lead Time
• Stocked product (ships in 1–2 business days)

––––––––––––––––––

Full Specifications
• Model: R-T-GRND
• Type: Temporary Screw Ground Rod
• Length: 6 ft
• Construction: Copper-clad rod
• Helix, Handle, Wing Nut Material: Bronze
• Cable Options: #2, 1/0, 2/0, 4/0 available
• Optional Ground Clamp Styles:
– Bronze Flat Face
– Aluminum “C” Type
– Aluminum Flat Face
– Duck Bill with Ferrule
– Bronze Flat Face
