HDE UCT-8 Underground Cable Tester 8kVDC Hi Pot Kit for Overhead and Underground Systems UCT-8/K02

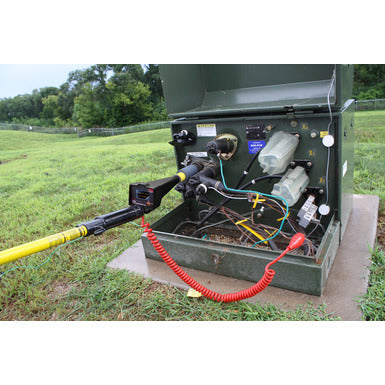

The HDE UCT-8 Underground Cable Tester is a self contained 8kVDC Hi Pot testing system designed for linemen and utility crews to evaluate de energized shielded underground primary cable before it is placed back into service. Its compact, lightweight design allows single hot stick operation while providing clear pass or fault indications without requiring an external power source.

An integrated safety feature checks for the presence of AC voltage before switching to DC testing, helping protect operators during underground cable testing and fault location.

Key Benefits

• Performs 8kVDC Hi Pot testing on de energized underground primary cable
• Self contained design requires no external power source
• Tests cable runs up to 1,500 feet
• Automatically checks for AC voltage before DC testing
• Clear analog bar graph displays cable condition
• Indicates good or faulted cable
• Lightweight design supports single hot stick operation
• Suitable for both overhead and underground utility applications
• Compact carrying case for easy transport

Common Uses

Commonly used for:

• Underground primary cable testing
• Hi Pot testing before cable energization
• Fault verification on underground distribution systems
• Cable maintenance and troubleshooting
• Underground switching operations
• Utility commissioning
• Lineman tools for underground cable testing
• Utility equipment for electrical system diagnostics

Specifications

• Product Type: Underground Cable Tester
• Brand: HDE
• Model: UCT-8
• DC Test Voltage: 8kVDC
• AC Voltage Detection: 100V to 25kVAC line to ground
• Accuracy: ±5% of AC voltage reading
• Display: LED with analog bar graph
• Operating Frequency: 50/60 Hz
• Maximum Cable Length: Up to 1,500 ft (457 m)
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Dimensions: 14 in L × 4.6 in W × 4.1 in H (36 × 12 × 10 cm)

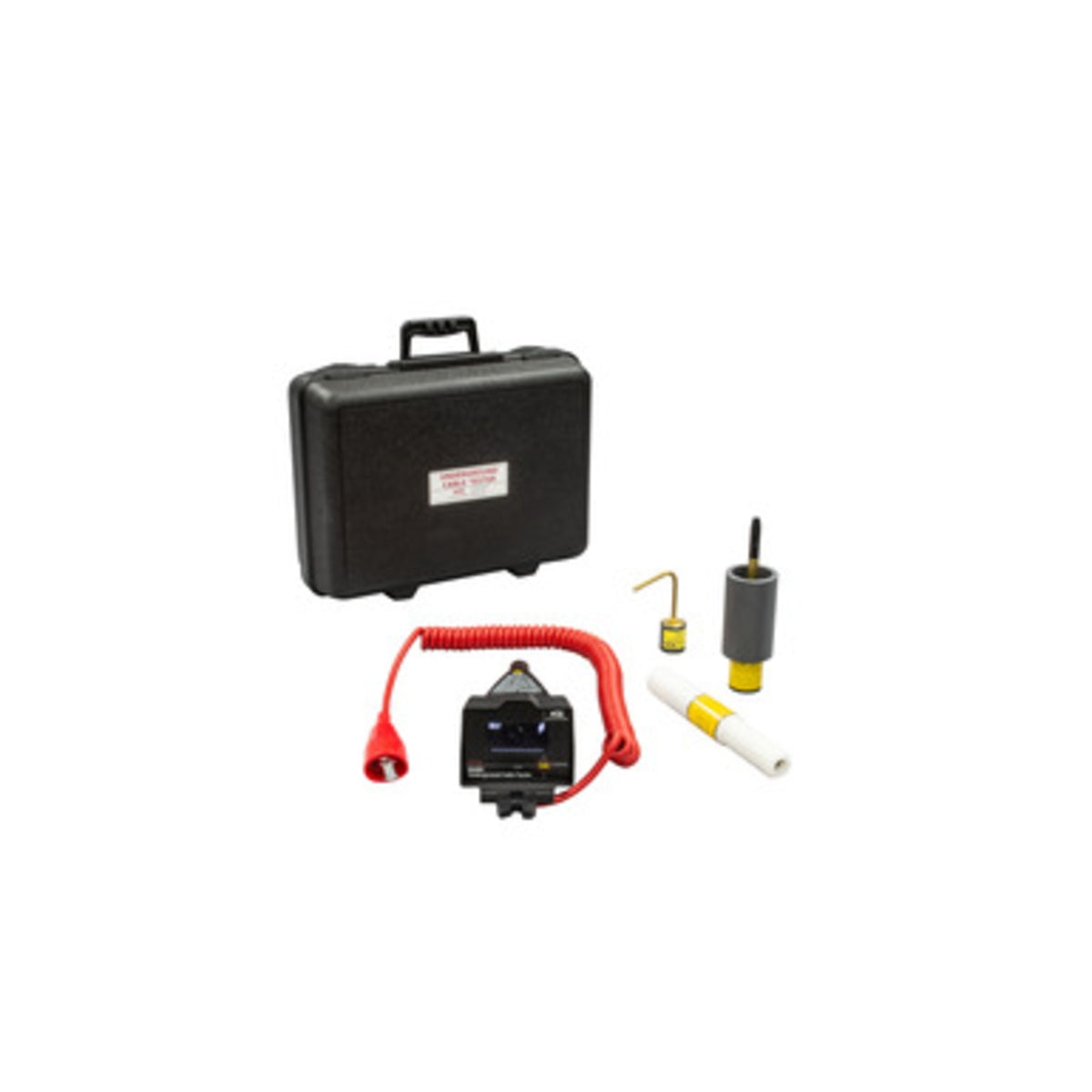

Kit Includes

• HDE UCT-8 Underground Cable Tester
• Overhead brass hook probe
• Underground bushing probe
• Underground elbow probe
• Protective carrying case

Who It's For

Designed for linemen, utility contractors, municipal utilities, and electrical crews performing underground distribution maintenance, cable fault testing, switching, and commissioning of shielded primary cable systems.

Lead Time

Call for availability.
