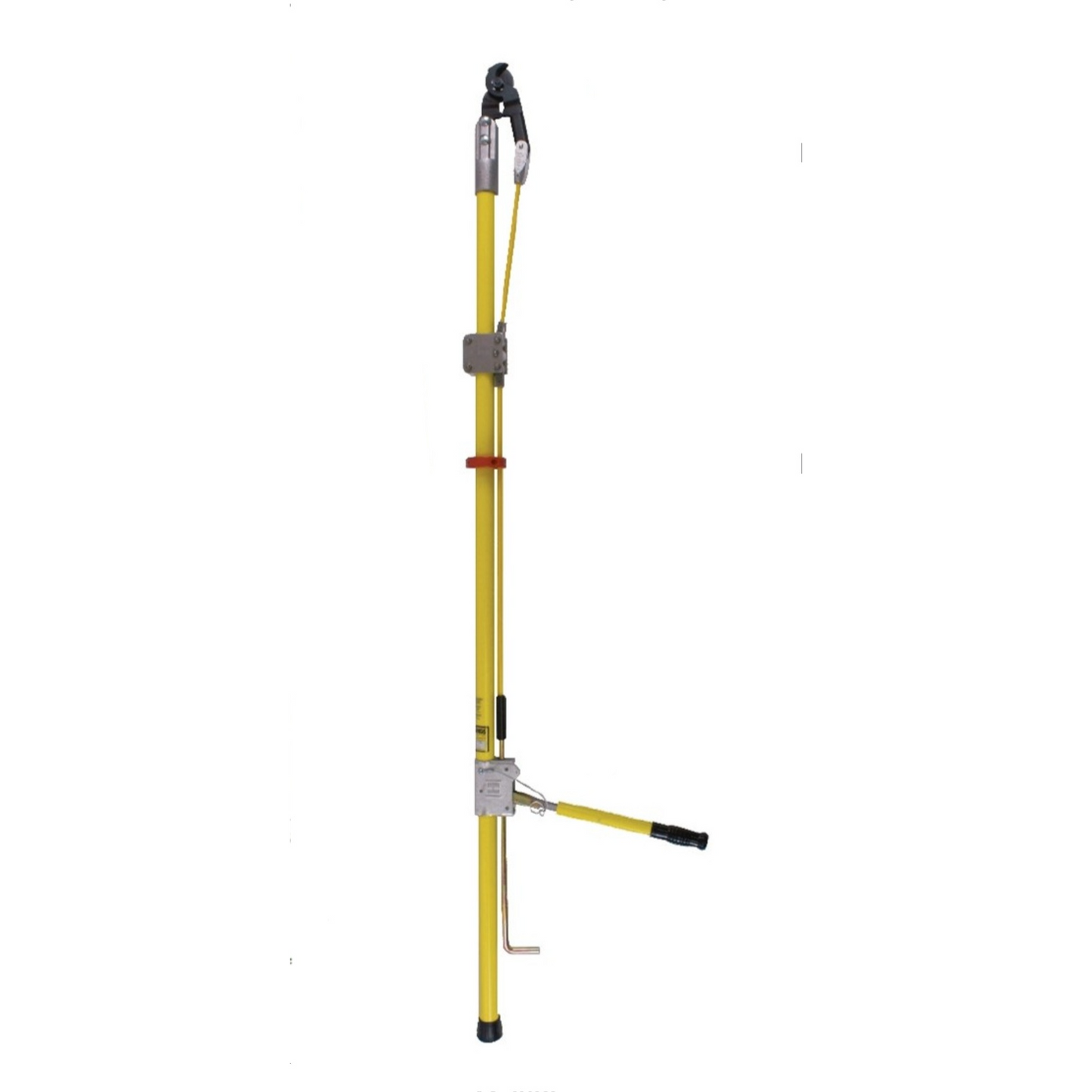

Hastings Insulated Ratchet Cable Cutter with ACSR Head Fiberglass Handle

The Hastings Insulated Ratchet Cutter is used by linemen to cut ACSR and soft wire conductors during overhead and underground work. Designed for controlled cutting in tight spaces, it delivers clean cuts while maintaining operator safety with an insulated fiberglass handle.

Key Benefits
• Interchangeable cutter heads for ACSR and soft wire applications
• Ratchet mechanism provides controlled cutting with minimal effort
• Insulated fiberglass shaft improves safety on energized job sites
• Operates in any position for flexibility in the field
• Folding handle allows compact storage in canisters
• Upper roller reduces shaft deflection for cleaner cuts
• Standardized parts simplify maintenance and replacement

Common Uses
Commonly used for:
• Cutting ACSR conductors
• Cutting aluminum and copper wire
• Overhead distribution splicing preparation
• Underground cable cutting in tight trenches
• Utility equipment installation and maintenance
• Lineman tools for conductor handling

Specifications
Type: Insulated ratchet cable cutter
Handle: Fiberglass insulated shaft
Operation: Manual ratchet mechanism
Storage: Folding handle fits 6 in canister

Cutter Head Options
• A11055: ACSR up to 666-24/7 strand
• A11056: Soft wire up to 1000 MCM aluminum and 500 MCM copper

Available Lengths
• 5 ft
• 6 ft
• 8 ft
• 10 ft

Features
• Interchangeable cutting heads
• Designed for overhead and underground use
• Capable of operating in trenches as narrow as 5 in

Who It’s For
Designed for linemen, utility contractors, and electrical crews performing overhead distribution and underground cable work using insulated lineman tools.

Lead Time
Call for availability
