Utility Solutions BREAK-SAFE 27kV Load Break and Pickup Jumper Clamp with Hardcase 300 Amp

Product Overview

The Utility Solutions BREAK-SAFE 27kV Tool is used by linemen to safely break load, pick up load, and carry current on energized overhead distribution systems. Designed as a portable switching solution, it allows crews to perform switching operations without permanent load break devices.

Key Benefits
• Combines load break, load pickup, and current carrying in one tool
• Operated with hot sticks to maintain safe working distance
• Yellow safety lock prevents unintended operation
• Portable design reduces need for installed switching equipment
• Available with floating head or duckbill configurations
• Includes hardcase for protection and transport

Common Uses
Commonly used for:
• Breaking load on energized lines
• Picking up load during switching operations
• Temporary switching in overhead distribution systems
• Jumper installation and reconfiguration
• Utility equipment switching operations
• Lineman tools for energized conductor handling

Specifications
Model Options:

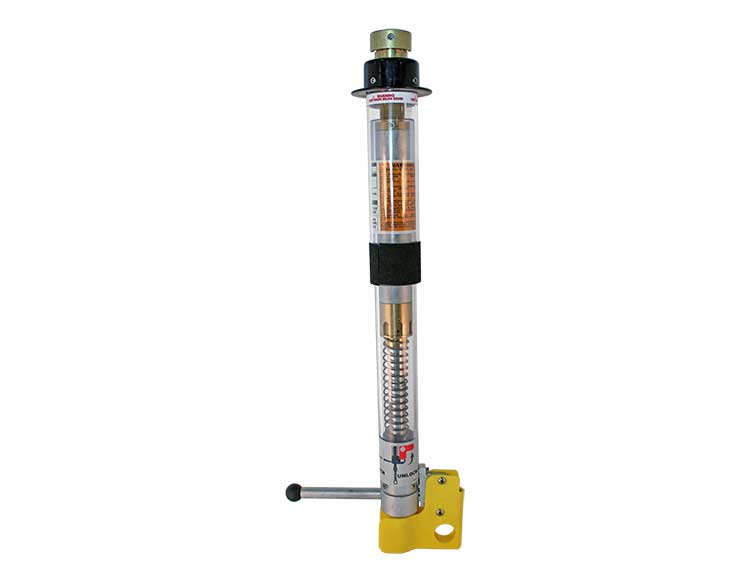

• USBS-27-1-PS (Floating Head)

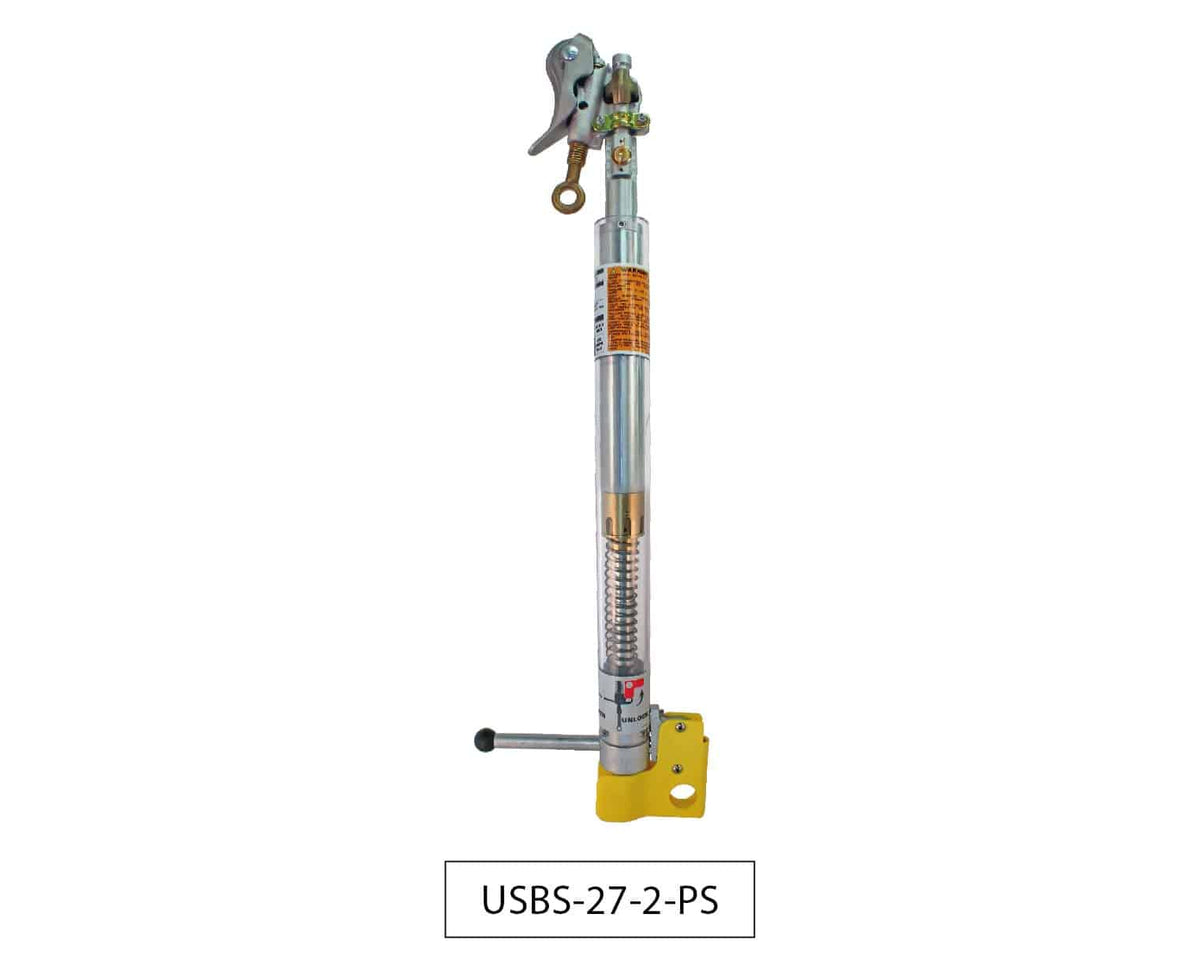

• USBS-27-2-PS (Duckbill Head)

System Voltage: 27kV
Current Rating: 300 Amp

Closed Length:
• Floating Head: 28 in
• Duckbill Head: 32 in

Open Length:
• Floating Head: 33.5 in
• Duckbill Head: 37.5 in

Weight:
• Floating Head: 7 lb 10 oz
• Duckbill Head: 7 lb

Capacity
• Conductor Range: #6 copper to 954 ACSR (1.1 in diameter)
• Maximum Opening Diameter: 2.5 in

Functions
• Load Break
• Load Pickup
• Continuous Current Duty

Configuration Options
• Floating Head for flexibility
• Duckbill Head for secure conductor grip

Important Notes
• Designed for use with insulated fiberglass hot sticks
• Part of the BREAK-SAFE system for portable switching

Who It’s For
Designed for linemen, utility contractors, and electrical crews performing overhead distribution switching and energized line work using specialized lineman tools and utility equipment.

Lead Time
Call for availability
