Utility Solutions BREAK-SAFE 38kV Load Break and Pickup Jumper Clamp with Hardcase 300 Amp

Product Overview

The Utility Solutions BREAK-SAFE 38kV Tool is used by linemen to safely break load, pick up load, and carry current on energized overhead distribution systems. Designed as a portable switching solution, it eliminates the need for permanent load break devices while maintaining safe working distance.

Key Benefits
• Combines load break, load pickup, and current carrying in one tool
• Operated with hot sticks to maintain safe working distance
• Yellow safety lock prevents unintended operation
• Portable solution reduces need for installed switching devices
• Available with floating head or duckbill configurations
• Comes with protective hardcase for transport and storage

Common Uses
Commonly used for:
• Breaking load on energized lines
• Picking up load during switching operations
• Temporary switching in overhead distribution systems
• Jumper installations and reconfigurations
• Utility equipment switching operations
• Lineman tools for energized conductor handling

Specifications
Model: USBS-38-1-PS (Floating Head) / USBS-38-2-PS (Duckbill Head)
System Voltage: 38kV
Current Rating: 300 Amp
Closed Length:
• Floating Head: 33 in
• Duckbill Head: 37 in
Open Length:
• Floating Head: 41 in
• Duckbill Head: 45 in
Weight:
• Floating Head: 8 lb 6 oz
• Duckbill Head: 7 lb 12 oz

Capacity
• Conductor Range: #6 copper to 954 ACSR (1.1 in diameter)
• Max Opening Diameter: 2.5 in

Functions
• Load Break
• Load Pickup
• Continuous Current Duty

Configuration Options

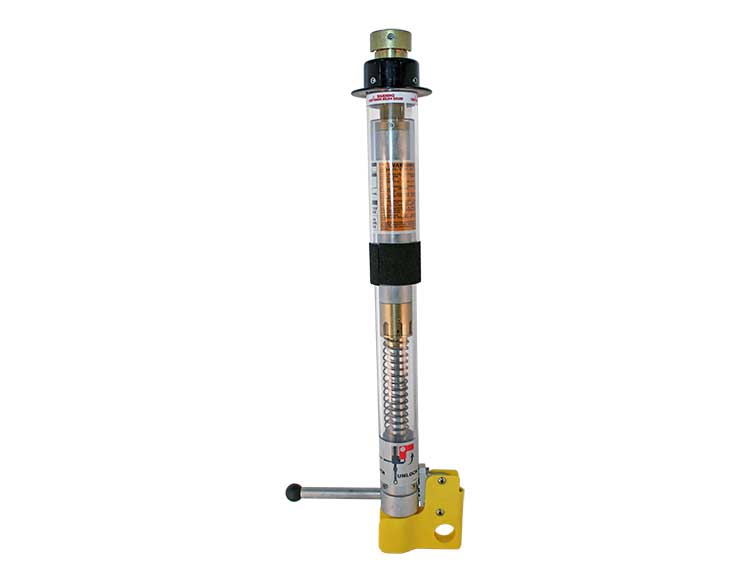

• Floating Head for flexible positioning

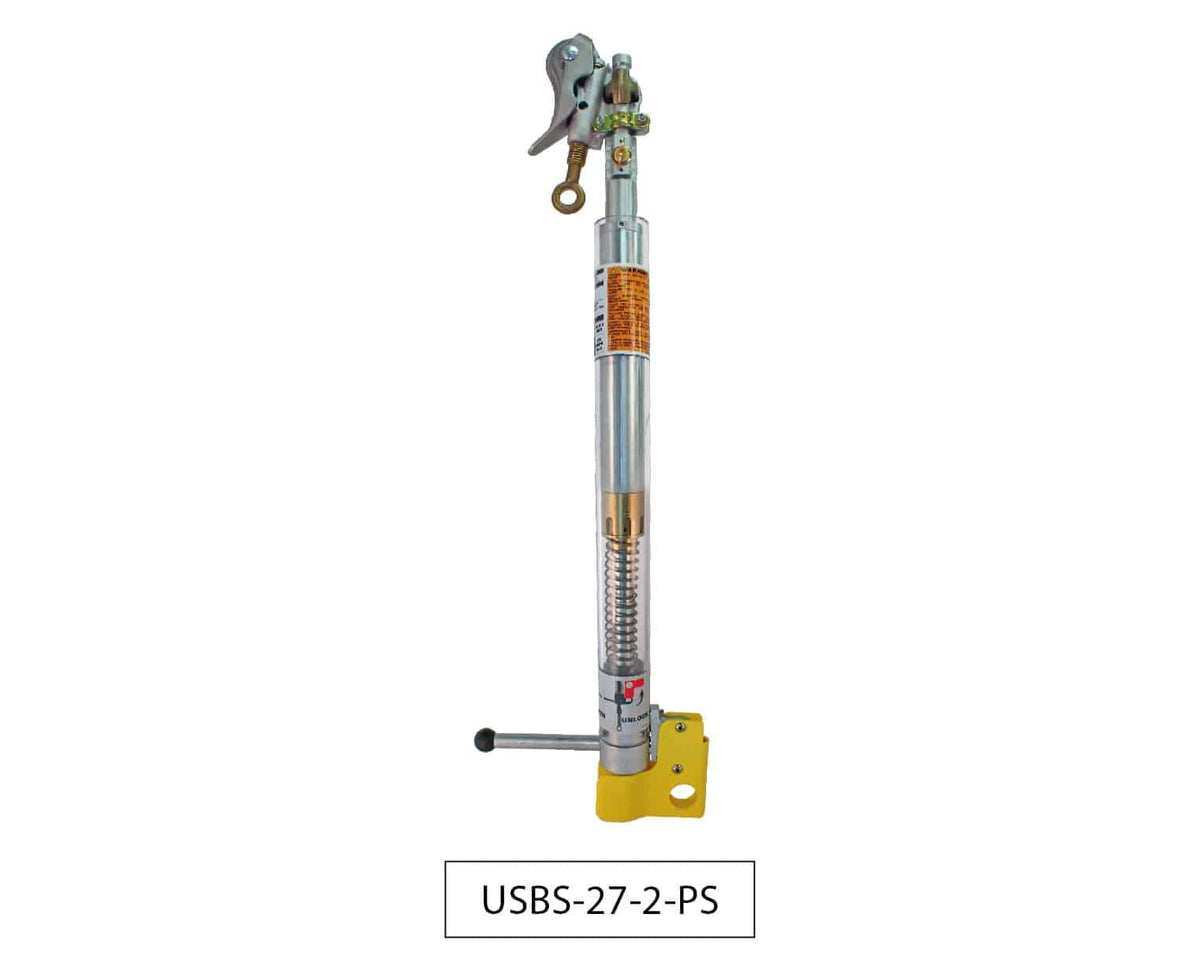

• Duckbill Head for secure conductor grip

Important Notes
• Requires product verification prior to ordering
• Designed for use with insulated fiberglass hot sticks

Who It’s For
Designed for linemen, utility contractors, and electrical crews performing overhead distribution switching and energized line work using specialized lineman tools and utility equipment.

Lead Time
Call for availability
