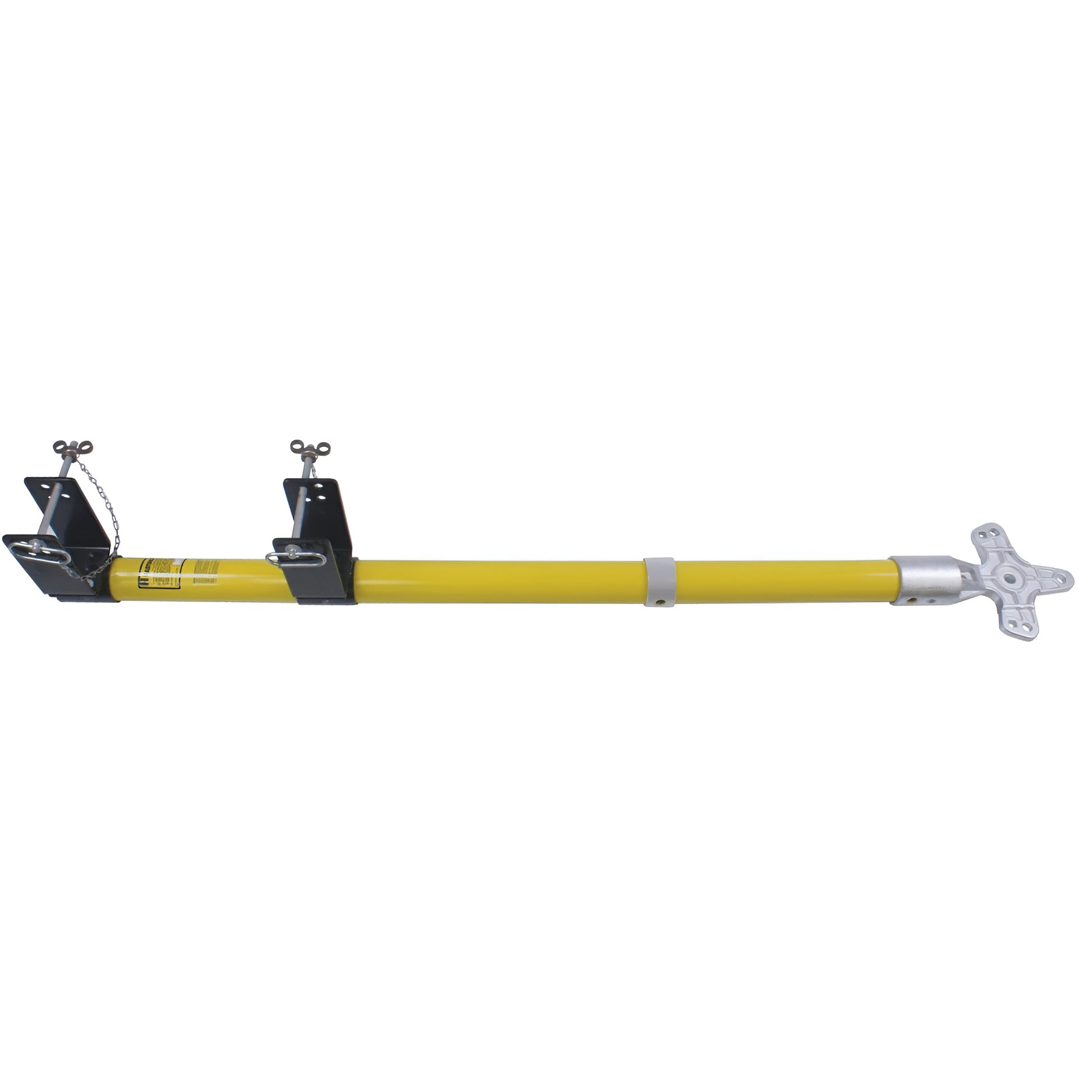

Hastings Temporary Dead End Arm with 3-Way Clover Bracket 7674

The Hastings 7674 Temporary Dead End Arm is used by linemen to spread and hold conductors off existing structures to create working clearance during reconductoring and maintenance. It is ideal for overhead distribution work where crews need temporary conductor positioning while replacing or terminating lines.

Key Benefits
• Creates working clearance by spreading conductors away from structures
• 3 way clover bracket allows mounting of cutouts, arresters, or tap lines
• Fiberglass arm with foam core for strength and durability
• Can be mounted on top or bottom of existing crossarms
• Adjustable bracket fits a range of crossarm sizes
• Reinforced mounting holes reduce wear on fiberglass

Common Uses
Commonly used for:
• Temporary dead ending of conductors
• Spreading lines for clearance during maintenance
• Reconductoring and line replacement
• Mounting cutouts and lightning arresters temporarily
• Overhead distribution work in tight or energized areas
• Conductor handling for lineman tools and utility equipment

Specifications
Model: 7674
Type: Temporary dead end arm with 3 way clover bracket
Material: Fiberglass with foam core
Arm Diameter: 3 in
Load Capacity:
• 500 lb per position
• 1,000 lb total
Tap Line Limit: 150 lb (slack spans only)
Mounting: Crossarm top or bottom installation
Hardware Compatibility: 5/8 in bolts with 18 in spacing
Bracket Type: 3 way aluminum alloy clover bracket
Bracket Adjustment Range: Fits multiple crossarm sizes

Who It’s For
Designed for linemen, utility contractors, and electrical crews performing overhead distribution work, conductor handling, and temporary line configurations.

Lead Time
Call for availability
