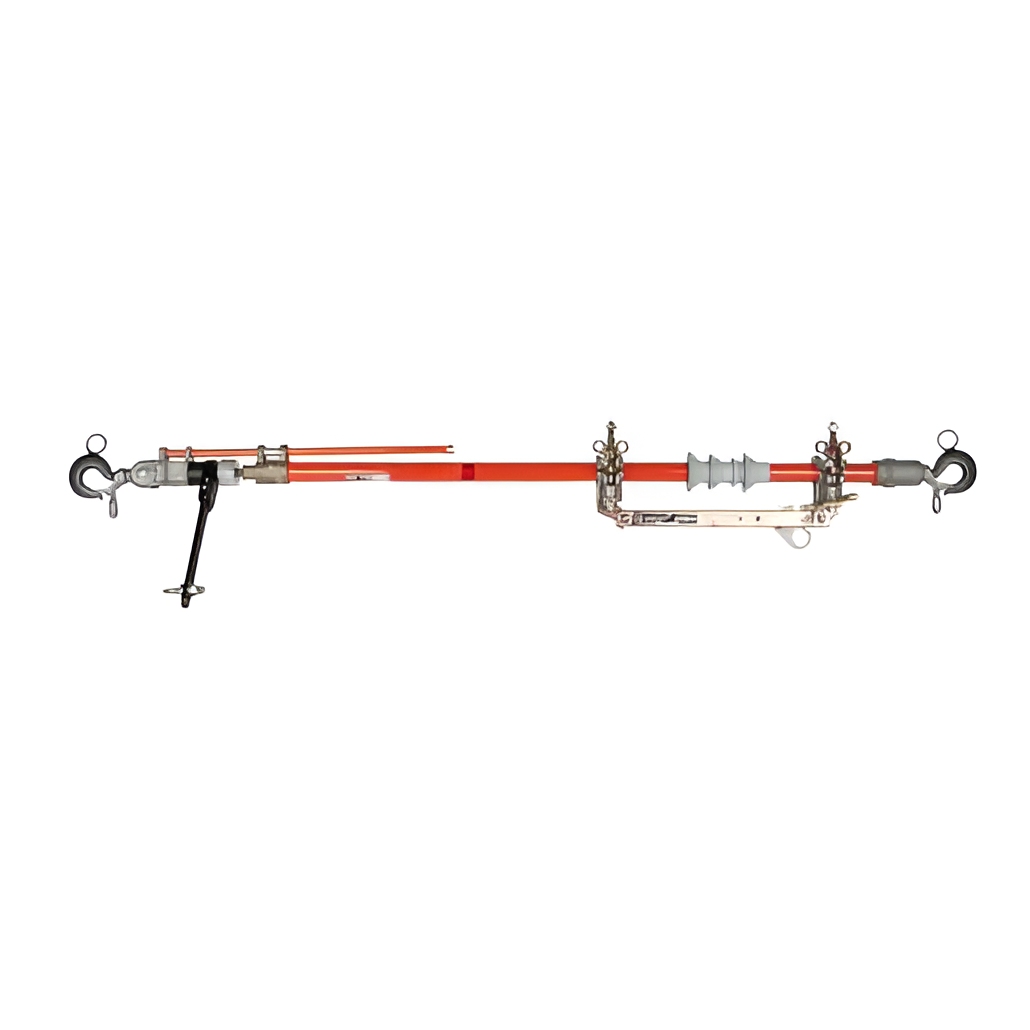

CHANCE Tension Puller Switching Tool 35kV Temporary Line Disconnect C4001907

Combines a tension puller and temporary disconnect switch to allow linemen to safely cut and sectionalize energized lines without interrupting service. Built for overhead distribution work where controlled tension, switching, and parallel circuit setup are required.

Key Benefits
• Allows cutting of energized conductors without service interruption
• Combines tension puller and disconnect switch in one tool
• Supports up to 4000 lb line tension for secure conductor control
• Bypass studs enable parallel circuit setup during work
• Silver plated contacts improve conductivity and performance
• Designed for hotstick or rubber glove operation
• Durable Epoxiglas insulated pole with weather resistant skirts

Common Uses
Commonly used for:
• Temporary line sectionalizing in overhead distribution
• Installing or replacing switches on energized lines
• Deadend structure construction and conductor cutovers
• Lineman tools for controlled conductor handling and switching
• Utility crews maintaining service continuity during repairs
• Electrical crews working energized systems with load control

Specifications
Model: C4001907

Voltage Rating:
35 kV phase to phase

Current Rating:
600 amp continuous

BIL Rating:
150 kV

Working Load Limit:
4000 lb

Length Range:
58 in to 70 in

Construction:
Epoxiglas insulated pole with bonded polymer weathershed skirts
Copper switch blade with silver plated contacts

Switch Operation:
Opens to 90 degrees standard
Opens to 180 degrees with stop pin removed
Galvanized hooks for loadbreak device operation

Bypass Features:
Dual 1/2 in bypass studs
Accepts jumper clamps up to 3 in wide

Operation:
Hotstick compatible rings
Rubber glove capable
Non swiveling hooks with spring loaded gates

Dimensions:
Length: 72 in
Width: 19 in
Height: 11 in

Weight:
29 lb

Compliance:
Tested per OSHA and ASTM F711
Refer to ANSI C37.35 for application guidance

Who It’s For
Designed for linemen, utility contractors, and electrical crews performing energized overhead distribution work who need safe conductor control, temporary switching, and uninterrupted service during maintenance and installation.

Lead Time
Call for availability

NOTE: All products are sold AS IS and have not been tested in accordance with OSHA and ASTM standards. If your products require testing certification, please reach out to sales@titanutility.net PRIOR to placing your order.
